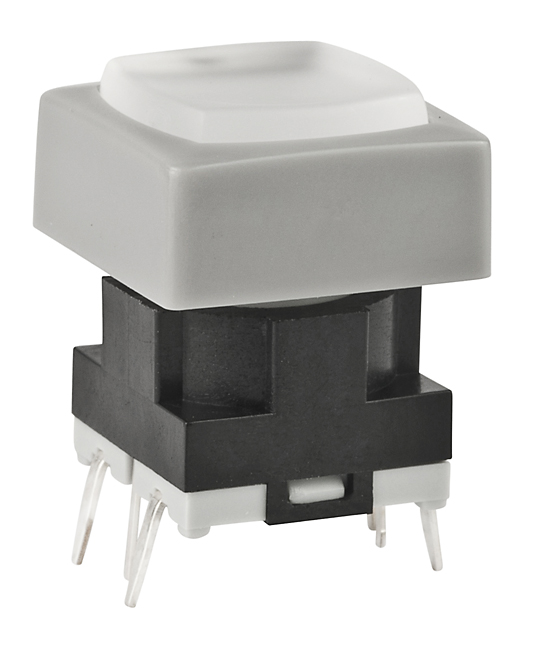

NKK Switches JB15HBPFBH Illuminated Tactile Switch
This low-profile tactile switch features illumination with LED options, compact design, and reliable operation for PCB applications. Its sealed construction prevents contact contamination, making it ideal for electronic panels requiring precise tactile feedback. It offers high durability with up to 5 million operations, diverse actuator options including short and extended types, and multiple LED color choices such as red, yellow, or green. Designed for easy automated soldering and cleaning, this switch ensures consistent performance and enhances panel aesthetics with attractive illumination. Suitable for low-voltage, low-current circuits requiring reliable and visually appealing controls.
NKK Switches JB15HBPFBH Illuminated Tactile Switch Specifications:
- Electrical Capacity: 50mA @ 24V DC (standard force), 125mA @ 24V DC (high force)
- Contact Resistance: 50 milliohms max
- Insulation Resistance: 500 megohms min @ 250V DC
- Dielectric Strength: 250V AC for 1 minute
- Mechanical Life: 5,000,000 operations min
- Electrical Life: 5,000,000 operations min
- Nominal Operating Force: 1.76N (standard), 2.65N (high force)
- Total Travel: 0.010” (.254mm) (short actuator), 0.012” (.300mm) (extended actuator)
- Actuator Material: Polyacetal for short, Glass fiber reinforced PBT for extended
- Case Material: UL94V-0 rated Polyamide
- Seal: Nitrile butadiene rubber
- Base: Glass fiber reinforced PBT (UL94V-0)
- Movable & Stationary Contacts: Stainless steel, silver plated brass
- Terminals: Framed snap-on or straight PC
- Operating Temperature Range: 25°C to +70°C
- Humidity Resistance: 90-95% for 240 hours at 40°C
- Vibration Resistance: 10-55Hz with amplitude of 1.5mm
- Shock Resistance: 50G acceleration
- Soldering & Cleaning: Wave and manual soldering recommended, automated cleaning compliant
- Standards & Certifications: UL94V-0 rated case and base; no UL/CSA certification for switches
- LED: Bright, full-face illumination, colors include red, yellow, green; forward current 20mA; forward voltage ~2.0-2.2V
