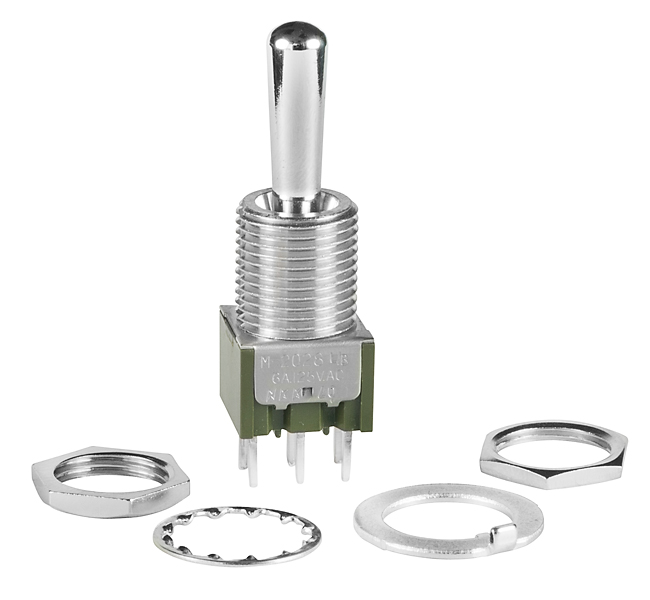

NKK Switches M2028B2B1W03 Miniature Toggle Switch
This is a miniature toggle switch with multi-function capabilities, ideal for various electronic applications. Its compact design makes it suitable for limited space installations.
NKK Switches M2028B2B1W03 Miniature Toggle Switch Specifications:
- Electrical Capacity: 6A @ 125V AC & 3A @ 250V AC
- Contact Materials & Ratings: Silver over Silver Power Level 6A @ 125V AC & 3A @ 250V AC, Gold over Brass or Copper Logic Level 6A @ 125V AC & 3A @ 250V AC
- Terminals: Solder Lug epoxy seat, Quick Connect, 7 062” (1.57mm) wide, 0.8mm thick, straight PC, optional extended PC terminals
- Operating Temp Range: -30°C through +85°C (-22°F through +185°F)
- Material: Brass with Bright Chrome finish, Polycarbonate case, nickel-plated contacts
- Mounting Hardware: Hex nut, locking ring, lockwasher, and O-ring options
- Vibration: 10 ~ 55Hz, peak-to-peak amplitude of 1.5mm
- Shock: 50G acceleration, tested in multiple directions
- Sealing: Splashproof options meet IP67 standards
- Environmental: 96 hours @ 40°C humidity, rapid vibration and shock testing
- Standards & Certifications: UL recognized, CSA certified, recognized at 6A @ 125V AC
Buy the Buy NKK Series M Miniature Toggle Part Number M2028B2B1W03 Online
Experience seamless online purchasing with NKK Series M miniature toggle switch. Designed for precise control in electronic devices, it offers high durability, compact size, and reliable contact ratings. Its splashproof and certifications ensure safety and longevity in various environments. Whether for industrial control panels or consumer electronics, buying this switch online guarantees quick delivery and excellent support. Enhance your project with a switch that combines robustness, ease of installation, and compliance with industry standards. Order now and upgrade your equipment today!
Buy NKK Series M M2028B2B1W03 miniature toggle switch now and experience unmatched reliability and performance in compact design.
Frequently Asked Questions
Where can I buy NKK Switches M2028B2B1W03?
You can click on the BUY or RFQ button to purchase M2028B2B1W03 from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part M2028B2B1W03?
You can download the M2028B2B1W03 datasheet or visit the NKK Switches website for support.
Who is the manufacturer of M2028B2B1W03?
NKK Switches
