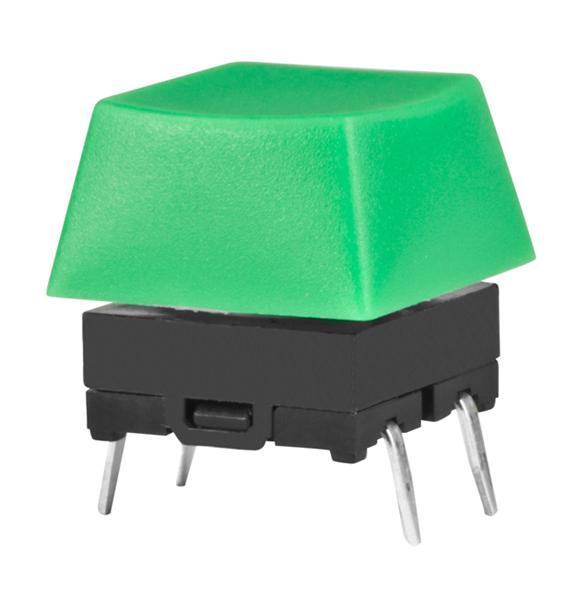

NKK Switches JB15KP1F Pcb Tactile Switch
The JB Series low-profile tactile switch offers reliable, crisp feedback for PCB applications, featuring a sealed construction, high durability of up to 5,000,000 operations, and multiple actuator options. Designed with rubber sealing to prevent contact contamination, it ensures performance in harsh environments, meeting IEC IP67 standards. Its compact size, plated contacts, and gold-plated terminals provide excellent electrical conductivity. Suitable for use in low-voltage, low-current, logic-level circuits, it supports automated soldering and cleaning, making it ideal for compact electronic devices requiring precise tactile feedback and long service life.
NKK Switches JB15KP1F Pcb Tactile Switch Specifications:
- Electrical Capacity (Resistive Load): 50mA @ 24V DC maximum for Standard Operating Force models, 125mA @ 24V DC maximum for High Operating Force models
- Contact Resistance: 50 milliohms maximum
- Insulation Resistance: 500 megohms minimum @ 250V DC
- Dielectric Strength: 250V AC minimum for 1 minute
- Mechanical Life: 5,000,000 operations minimum
- Electrical Life: 5,000,000 operations minimum
- Nominal Operating Force: 1.76N for JB15, 2.65N for JB1SH
- Total Travel: 0.010" (0.250mm) or 0.012" (0.300mm)
- Actuator: Glass fiber reinforced PBT for extended, PBT for flat, polyacetal for short
- Case & Seal: Glass fiber reinforced polyamide (UL94V-0), Nitrile butadiene rubber seal
- Base: Glass fiber reinforced PBT (UL94V-0)
- Movable Contacts: Phosphor bronze with tin plating
- Stationary Contacts: Brass with silver plating
- Terminals: Brass with silver plating, stamped and plated
- Mounting Bracket: Not specified
- Operating Temperature Range: 25°C through +70°C (-13°F through +158°F)
- Humidity: 90-95% for 240 hours @ 40°C
- Vibration: 10-55Hz with amplitude of 1.5mm, 2 hours in 3 directions
- Shock: 50G (490m/s²) acceleration in 6 directions
- Sealing: IP67 (IEC 60529), resistant to dust and water
- Soldering: Wave, manual, and automated cleaning compatible
- Standards & Certifications: UL94V-0 rated case and base, not tested for UL or CSA certification
