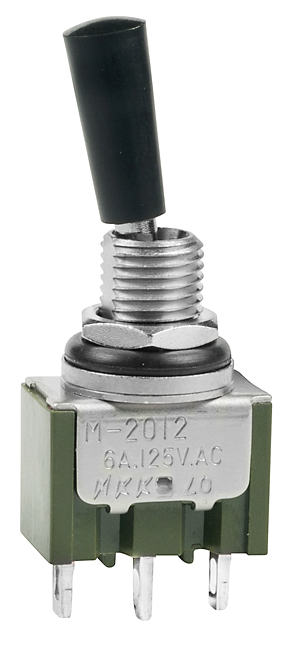

NKK Switches M2012SD3W01CA Miniature Toggle Switch
This is a miniature toggle switch with multi-function capabilities, suitable for various electronic applications requiring compact switching components.
NKK Switches M2012SD3W01CA Miniature Toggle Switch Specifications:
- Poles & Circuits: 1 Pole/2-3-4 Poles configurations available
- Contact Materials & Ratings: Silver over Silver 6A @ 125V AC, 3A @ 250V AC; Gold over Brass or Copper 6A @ 125V AC, 3A @ 250V AC
- Dual Rating: Power level 6A @ 125V AC & 3A @ 250V AC, Logic level 6A @ 125V AC & 3A @ 250V AC, maximum 0.4VA @ 28V AC/DC
- Terminal Dimensions: 0.062” (1.57mm) Wide, various terminal types including Solder Lug, Quick Connect, Straight PC, Wirewrap, with lengths varying from 0.750” (19.05mm) to 1.062” (27.0mm)
- Operating Temperature Range: -30°C to +85°C
- Environmental Resistance: Vibration 10 ~ 55Hz, Shock 50G, splashproof options with IP67 sealing
- Electrical Life & Mechanical Life: 100,000 operations mechanical, 50,000 electrical for gold contacts
- Mounting & Hardware: Brass with chrome plating, optional finishes available, mounting torque approximately 0.4Nm
- Standards & Certifications: UL Recognized, CSA Certified, flammability UL 94V-0, recognizing compliance with IEC standards
Buy the NKK Series M – Reliable Miniature Toggle Switch for Industrial Applications
Purchase the NKK Series M miniature toggle switch online today to ensure reliable switching performance in your electronic projects. This high-quality switch offers multiple circuit options, dual ratings, and IP67 splashproof variants, making it suitable for industrial and commercial applications. Its compact size, robust construction, and certified safety standards guarantee long-lasting durability and safe operation. Whether you need single-pole or multi-pole configurations, buying online ensures fast delivery and excellent customer support for your automation, control, or instrumentation needs.
Order your NKK Series M miniature toggle switch today and give your electronic projects the dependable performance they need for demanding industrial applications.
Frequently Asked Questions
Where can I buy NKK Switches M2012SD3W01CA?
You can click on the BUY or RFQ button to purchase M2012SD3W01CA from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part M2012SD3W01CA?
You can download the M2012SD3W01CA datasheet or visit the NKK Switches website for support.
Who is the manufacturer of M2012SD3W01CA?
NKK Switches
