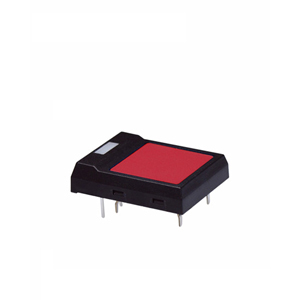

NKK Switches JF15RP1CE Illuminated tactile switch
Ultra-thin tactile switch with illumination designed for printed circuit board applications. Compact and reliable, suitable for electronic interfaces requiring tactile feedback and visual indication.
NKK Switches JF15RP1CE Illuminated tactile switch Specifications:
- Flammability: UL 94V-0
- Contact Resistance: 50 milliohms maximum
- Insulation Resistance: 500 megohms minimum @ 250V DC
- Dielectric Strength: 250V AC/minute
- Electrical Capacity: 50mA @ 24V DC
- Total Travel: 0.4mm to 0.8mm depending on actuator
- Operating Force: 3.0N (flush); 2.0N (sculptured)
- Actuator: Square, round, or sculptured with illumination
- LED Colors: Red, Yellow, Green, Blue, Gray
- Housing Material: Polyamide, polycarbonate, and glass fiber reinforced plastics
- Seal: Rubber seal for contact contamination prevention
- Dimensions: Extremely low profile of 5.7mm height
- Terminal: Crimped for secure PCB mounting
- Operating Temperature: -13°F to 158°F (-25°C to 70°C)
- Humidity Tolerance: 90-95% for 96 hours at 40°C
- Shock Resistance: 50G in multiple directions
- Soldering: Wave, manual, and automated cleaning compatible
- Standards & Certifications: Not UL listed or CSA certified
Buy the Buy NKK Switches Illuminated Ultra-Thin Tactile Switch Part Number JF15RP1CE Online
Order the NKK illuminated tactile switch JF15RP1CE online today to enhance your electronic interfaces with reliable tactile feedback and vivid LED indicators. Its ultra-thin profile of just 5.7mm fits seamlessly into compact designs. Perfect for PCB applications requiring short travel, low operating force, and high durability. Easy to solder with compatibility for wave and automated cleaning processes. Elevate your device's performance and aesthetics by purchasing this high-quality, space-saving switch online now.
Buy NKK Switches JF15RP1CE now and experience unmatched reliability, compact design, and vibrant LED illumination for your electronic projects.
Frequently Asked Questions
Where can I buy NKK Switches JF15RP1CE?
You can click on the BUY or RFQ button to purchase JF15RP1CE from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part JF15RP1CE?
You can download the JF15RP1CE datasheet or visit the NKK Switches website for support.
Who is the manufacturer of JF15RP1CE?
NKK Switches
