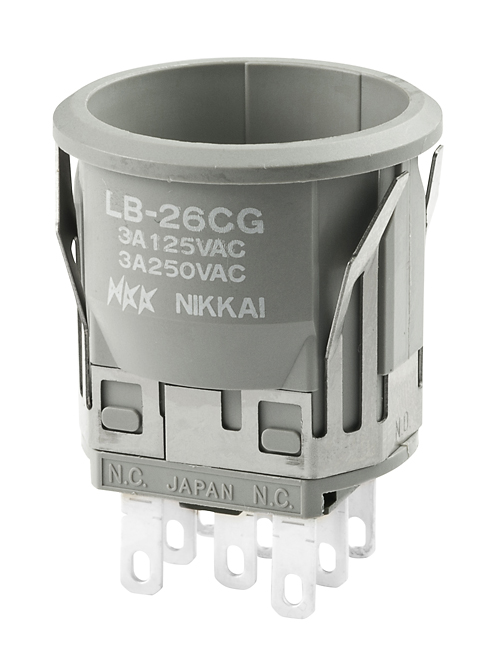

NKK Switches LB26CGW01 Illuminated Pushbutton
The standard size illuminated pushbutton switch with snap-in mounting offers easy installation and dependable operation, ideal for control systems requiring visual status indication. Featuring bright LEDs, multiple color and lens options, and sealed panel design for IP65 compliance, this switch ensures long-lasting performance in industrial or commercial environments. Constructed from durable materials like polycarbonate and stainless steel, it withstands harsh conditions, including temp range of -25°C to +50°C. The switch also supports different illumination types including LED, incandescent, and neon lamps, suitable for diverse applications needing customizable visual alerts.
NKK Switches LB26CGW01 Illuminated Pushbutton Specifications:
- Housing Material: Polycarbonate
- Base Material: GFR Polyamide
- Contact Resistance: 50 milliohms maximum for silver, 100 milliohms for gold
- Insulation Resistance: 200 megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC between contacts, 1,500V AC between contacts & case
- Mechanical Life: 1,000,000 operations minimum for momentary circuit, 200,000 for maintained circuit
- Electrical Life: 100,000 operations minimum
- Nominal Operating Force: Not specified
- Travel: Pretravel 1.5mm, Overtravel 1.5mm, Total Travel 3.0mm
- Panel Seal: Meets IP65 IEC60529
- Operating Temperature Range: -25°C to +50°C for illuminated, -25°C to +70°C for non-illuminated
- Dimensions: Square shape, cutout 16.2mm x 16.2mm, panel thickness 1.0 to 4.0mm
- Mounting: Snap-in clip system, compatible with various panel thicknesses
- Electrical Ratings: 3A at 125/250V AC; 0.4VA max at 28V AC/DC
- Lamp Compatibility: LED, incandescent, neon; multiple color options
- Standards & Certifications: Recognized under UL, CSA, cULus when ordered with markings
Buy the Buy NKK Switches Series LB Illuminated Pushbuttons Part Number LB26CGW01 Online
Order the NKK Series LB illuminated pushbutton switch online today and enhance your control panel with reliable, bright LED illumination options. Designed for easy snap-in installation, these switches provide long-lasting durability and IP65-rated sealing, making them ideal for harsh environments. They support various light sources including LED, incandescent, and neon, and feature durable polycarbonate housings and stainless steel components. Whether for industrial machinery, automation, or control systems, purchasing this switch online ensures fast delivery and trusted quality for all your control needs.
Buy NKK Switches Series LB LB26CGW01 now and experience unmatched reliability and performance with durable, sealed illumination controls suitable for diverse industrial applications.
Frequently Asked Questions
Where can I buy NKK Switches LB26CGW01?
You can click on the BUY or RFQ button to purchase LB26CGW01 from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part LB26CGW01?
You can download the LB26CGW01 datasheet or visit the NKK Switches website for support.
Who is the manufacturer of LB26CGW01?
NKK Switches
