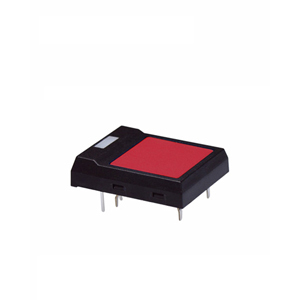

NKK Switches JF15RP1CF Illuminated Tactile Switch
Ultra-thin illuminated tactile switch designed for PCB applications, offering a low profile of 5.7mm, with options for spot or full face illumination in various colors. It features a rubber seal preventing contact contamination, ensuring high reliability and long service life with a minimum of 500,000 operations. The switch provides crisp tactile and audible feedback, with minimal operating force, short stroke, and space-saving body dimensions for compact mounting in control panels and user interfaces. Suitable for low-voltage, low-current logic circuits, it supports automated soldering and cleaning processes.
NKK Switches JF15RP1CF Illuminated Tactile Switch Specifications:
- Profile height: 5.7mm (.224") from PCB to top of switch
- Actuator options: Square, Round, Sculptured with full face or spot illumination
- LED colors: Red, Green, Yellow, Blue, Gray; Spot or Full Face illumination
- Electrical capacity: 50mA @ 24V DC, 500 megohms insulation resistance, 50 milliohms contact resistance
- Operating force: 3.0N for flush actuator, 2.0N for sculptured actuator
- Total travel: 0.4mm for flush, 0.8mm for sculptured
- Material: Glass fiber reinforced polyamide housing, rubber seal, phosphor bronze and brass contacts with silver plating
- Environmental ratings: -13°F to +158°F (-25°C to +70°C), 90-95% humidity for 96 hours at 40°C
- Soldering: Wave soldering and manual soldering profiles specified, automated cleaning recommended
- Mechanical durability: 500,000 operations minimum
- Terminal type: Crimped, straight PC terminals with 2 PCB traces
- Standards: Not UL or CSA certified, designed for low-voltage logic circuits
Buy the NKK Series JF Illuminated Tactile Switch: JF15RP1CF
Explore the NKK Series JF illuminated tactile switch, featuring a sleek 5.7mm profile, bright LED options, and durable contacts perfect for PCB applications. This high-reliability switch offers crisp feedback, minimal operating force, and space-efficient design, making it ideal for user interfaces, control panels, and automation equipment. Soldering and cleaning processes are supported for easy assembly. Whether you need spot or full face illumination in various colors, this switch ensures high performance and long-lasting operation, readily available for online ordering and quick integration into your electronic projects.
Order your NKK Series JF15RP1CF illuminated tactile switch today and enhance your control panel with a reliable, low-profile, illuminated button.
