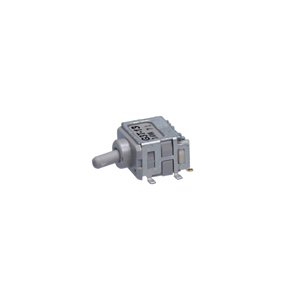

NKK Switches G3T13AHR Surface Mount Toggle Switch
This ultra-miniature toggle switch is designed for surface-mount technology, offering reliable, low-voltage switching in a compact form factor. Made with high-quality materials including UL94V-0 rated polyphenylene sulfide, it features rubber seals for total sealing, enabling automated soldering and cleaning processes. Suitable for high-density mounting in handheld and space-constrained electronic equipment, it supports logic-level circuits with low-resistance contacts and excellent insulation resistance. Capable of withstanding vibrations, shocks, and temperature extremes from -30°C to +85°C, this switch ensures long-term durability and dependable performance in demanding industrial applications.
NKK Switches G3T13AHR Surface Mount Toggle Switch Specifications:
- Electrical Capacity: 0.4VA maximum @ 28V AC/DC
- Contact Resistance: 80 milliohms maximum
- Insulation Resistance: 500 megohms minimum @ 500V DC
- Dielectric Strength: 500V AC minimum for 1 minute
- Mechanical Life: 50,000 operations minimum
- Electrical Life: 50,000 operations minimum
- Operating Temperature Range: -30°C to +85°C
- Humidity: 90-95% for 96 hours @ 40°C
- Vibration: 10-500Hz, amplitude 1.5mm for 1 minute
- Shock: 50G acceleration
- Actuator Material: UL94V-0 polyphenylene sulfide
- Case & Base: UL94V-0 polyphenylene sulfide
- Sealing Rings: Nitrile butadiene rubber
- Movable & Stationary Contacts: Phosphor bronze with gold plating
- Terminals: Epoxy-sealed molded-in contacts
- Mounting: Surface mount, orientations available for upright and right-angle mounting
- Support for reflow soldering and automated cleaning
Buy the NKK G3T13AHR – Reliable Toggle Switch for Industrial Applications
Order the NKK G3T13AHR surface mount toggle switch online today and equip your electronic devices with a space-efficient, durable, and high-performance switching component. Designed for industrial and commercial applications, this switch supports automated assembly with tape-reel packaging and is suitable for handling in low-voltage circuits. Its sealed construction ensures protection against environmental factors, vibration, and mechanical stress, making it ideal for rugged electronic equipment. Purchase now to benefit from fast delivery and expert support.
Buy NKK G3T13AHR toggle switch now and experience unmatched reliability and performance in your electronic designs.
Frequently Asked Questions
Where can I buy NKK Switches G3T13AHR?
You can click on the BUY or RFQ button to purchase G3T13AHR from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part G3T13AHR?
You can download the G3T13AHR datasheet or visit the NKK Switches website for support.
Who is the manufacturer of G3T13AHR?
NKK Switches
