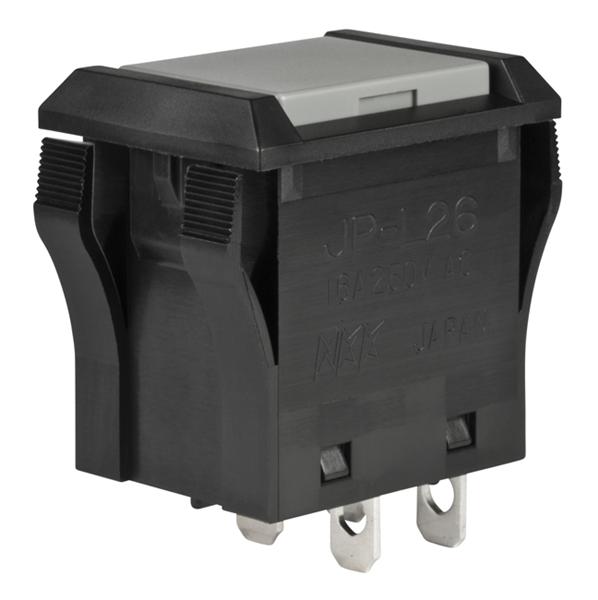

NKK Switches JPL26BH Power Push Button Switch
This power push button switch is designed for easy operation and offers reliable performance in electronic systems. Constructed with insulating barriers and sealed terminals to prevent dust ingress and contamination, it features a snap-action contact mechanism for responsive switching. Certified for high inrush current handling, it meets international standards and is suitable for controlling electrical loads in industrial and commercial applications. Its robust construction, including UL94V-0 thermoplastic housing and silver alloy contacts, ensures durability, safety, and consistent operation over extensive use.
NKK Switches JPL26BH Power Push Button Switch Specifications:
- Electrical Capacity: 10A @ 125/250V AC for JPM models, 16A for JPL models
- Contact Resistance: 20 milliohms maximum
- Insulation Resistance: 1,000 megohms minimum @ 500V DC
- Dielectric Strength: 2,000V AC minimum between contacts for 1 minute, 4,000V AC minimum between contacts and case for 1 minute
- Mechanical Life: 25,000 operations
- Electrical Life: 25,000 operations
- Nominal Operating Force: JPM Single Pole 3.53N, Double Pole 6.47N; JPL Single Pole 4.51N, Double Pole 9.02N
- Travel: Total travel .130” (3.3mm); Pretravel .059” (1.5mm); Overtravel .071” (1.8mm)
- Material: Housing and barrier - UL94V-0 polyamide; Terminals - brass with silver plating
- Temperature Range: -10°C to +70°C
- Vibration Resistance: 10-55Hz, peak-to-peak amplitude 1.5mm
- Shock Resistance: 50G acceleration in multiple directions
- Certifications: UL, VDE recognized for specific models
- Ratings: 10A @ 125/250V AC for JPM, 16A for JPL models
Buy the NKK JPM – Reliable Industrial Pushbutton for Electronic Applications
Purchase your NKK Series JP power push button switch online now for high reliability and durable performance in electronic and industrial applications. Certified for high inrush current handling and dust resistant with sealed terminals, this switch ensures safe, long-lasting operation. Its snap-action mechanism and UL94V-0 housing provide safety and durability, making it ideal for control systems. Experience fast, secure online ordering and deliver superior-quality switching solutions straight to your project.
Order your NKK Series JP power switch today and ensure dependable control for your electronic and industrial projects.
Frequently Asked Questions
Where can I buy NKK Switches JPL26BH?
You can click on the BUY or RFQ button to purchase JPL26BH from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part JPL26BH?
You can download the JPL26BH datasheet or visit the NKK Switches website for support.
Who is the manufacturer of JPL26BH?
NKK Switches
