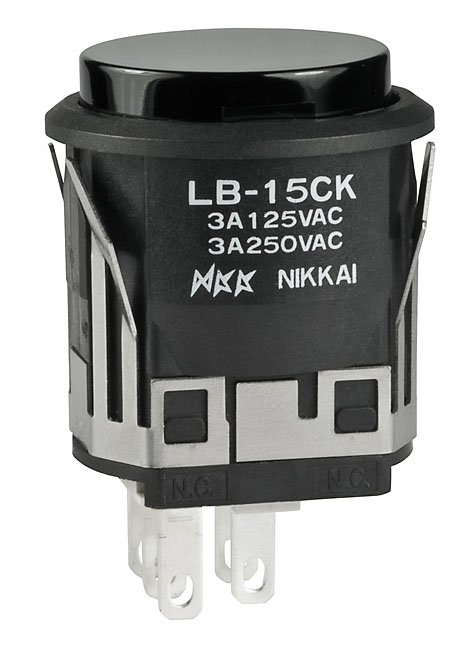

NKK Switches LB15CKW01A Illuminated Pushbutton
The LB15CKW01A is a standard size illuminated pushbutton switch designed for electronic and control systems. Featuring snap-in mounting, it offers bright LED illumination with various color options, including red, green, and blue, suitable for status indication. The switch operates with a rated 3A @ 125/250V AC, has a built-in resistor for LED compatibility, and provides tactile and audible feedback for reliable operation. Its durable construction includes polycarbonate caps and a sealed housing, ensuring IP65 compliance for panel sealing. Ideal for industrial controls, automation, and user interface applications with long electrical life and high reliability.
NKK Switches LB15CKW01A Illuminated Pushbutton Specifications:
- Housing: Polycarbonate, IP65 sealed
- Switch Type: Illuminated pushbutton
- Operation: Snap-in mounting
- Electrical Rating: 3A @ 125/250V AC
- Voltage: 28V AC/DC maximum for LED operation
- LED Colors: Red, Green, Blue, Amber, White
- LED Type: Bright, super bright, spot illumination
- Contact Resistance: 50 milliohms maximum for silver, 100 milliohms maximum for gold
- Insulation Resistance: 200 megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC contact-to-contact, 1,500V AC contact-to-case
- Mechanical Life: 1,000,000 operations
- Electrical Life: 200,000 operations minimum
- Ambient Operating Temperature: -25°C to +50°C for illuminated models
- Travel: Pretravel and overtravel approximately 1.5mm
- Material: Polyamide (UL94V-0) housing, stainless steel clips
- Environmental Resilience: Humidity up to 95% for 96 hours at 40°C, vibration and shock resistant
- Compliance: UL, cUL, CSA recognized with proper marking
- Mounting Force: 3.92N for cap, 52.95N for connector
Buy the Buy NKK Switches Series LB Illumined Pushbutton Part Number LB15CKW01A Online
Get your NKK Switches Series LB LB15CKW01A illuminated pushbutton now. Featuring snap-in mounting, bright LEDs, and IP65 sealing, it ensures durability and high performance for your control projects. With rated 3A @ 125/250V AC, excellent electrical and mechanical lifespan, this switch is perfect for industrial and automation applications. Easily install with minimal panel depth, and enjoy reliable tactile feedback and long-term operation. Purchase online today for fast delivery and competitive prices.
Order your NKK Switches Series LB LB15CKW01A illuminated pushbutton today and ensure reliable, long-lasting control operation for industrial automation.
Frequently Asked Questions
Where can I buy NKK Switches LB15CKW01A?
You can click on the BUY or RFQ button to purchase LB15CKW01A from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part LB15CKW01A?
You can download the LB15CKW01A datasheet or visit the NKK Switches website for support.
Who is the manufacturer of LB15CKW01A?
NKK Switches
