NKK Switches JPM26BC Power Pushbutton
This power push button switch is designed for reliable manual operation in electronic devices, featuring a robust push-button mechanism for precise control of power functions. It includes a flat cap with barrier flange, rated at 10A at 125/250V AC, with an ON-OFF circuit, and complies with international approvals for industrial applications. The switch features textured polyphenylene oxide caps, molded polyamide housing meeting UL 94V-0 flammability standards, and has a compact size suitable for control panels, offering durability, dust resistance with interior seals, and snap-action contacts for consistent performance.
NKK Switches JPM26BC Power Pushbutton Specifications:
- Rated Power Level: 10A @ 125/250V AC (TV-5 rating), 16A @ 125/250V AC (TV-8 rating)
- Electrical Resistance: Maximum 20 milliohms
- Insulation Resistance: Minimum 1,000 megohms @ 500V DC
- Dielectric Strength: Minimum 2,000V AC between contacts, 4,000V between contacts and case for 1 minute
- Mechanical Life: 25,000 operations
- Electrical Life: 25,000 operations
- Operating Temp Range: -10°C to +70°C
- Vibration Resistance: 10-55Hz, peak-to-peak 1.5mm amplitude
- Shock Resistance: 50G acceleration
- Housing/Frame & Barrier: Polyamide (UL94V-0)
- Cap Material: Polyphenylene sulfide (UL94V-0)
- Terminals: Brass with silver plating
- Panel Cutout: 0.187 inches (4.75mm)
- Switch Dimensions: Length varies, plunger with flat flange, flush normal position, latchdown 2mm below
- Certifications: UL Recognized, VDE Approved (optional)
- Standards & Certifications: UL, VDE, recognized for industrial control applications

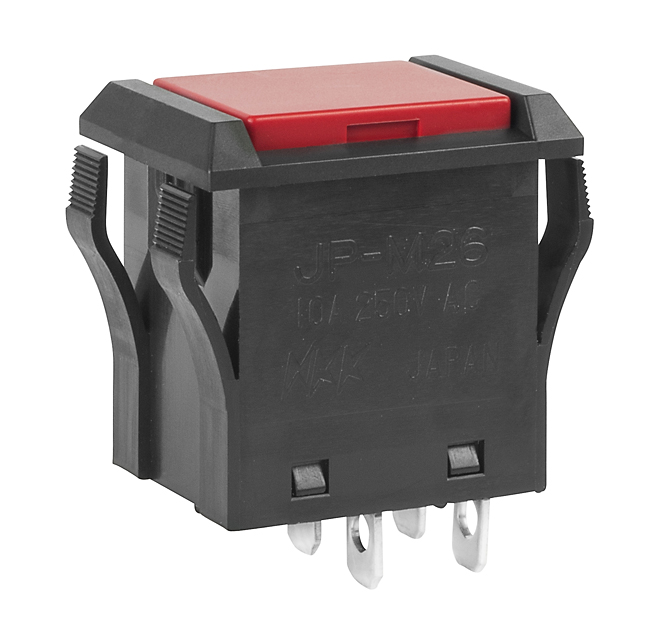

Buy the Buy NKK Series JP Power Pushbutton Part Number JPM26BC Online
Discover the NKK Power Pushbutton designed for reliable and precise control in electronic devices. Rated at 10A and 125/250V AC, it features a durable polyamide housing, dust resistant interior seals, and snap-action contacts for consistent operation. With UL recognition and optional VDE approval, this switch is ideal for industrial control panels. Its compact size, high mechanical and electrical life, and adherence to safety standards ensure dependable performance in demanding environments. Order online today and enhance your project’s control reliability.
Order your NKK Series JP JPM26BC power pushbutton today and enhance your electronic controls with this durable, UL-approved switch optimized for reliable operation.
