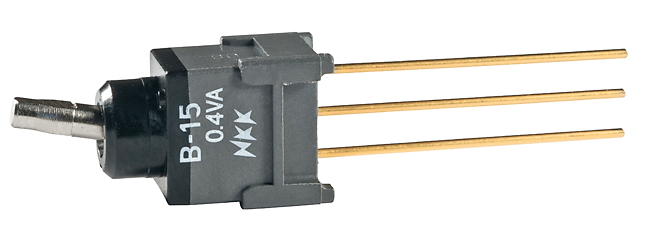

NKK Switches B15KW toggle switch
Subminiature toggle switch designed for PCB mounting, suitable for low-profile applications and precise control tasks. It features a sealed body construction that prevents contact contamination, ensuring reliable operation in harsh environments. The switch supports logic-level circuits with a maximum resistive load of 0.4VA @ 28V AC/DC, and offers long mechanical and electrical life with a minimum of 50,000 operations. Its compact size, durable nickel-plated brass toggle, and optional panel sealing bushing make it ideal for space-constrained, low-current control systems in industrial and electronic applications.
NKK Switches B15KW toggle switch Specifications:
- Electrical Capacity (Resistive Load): 0.4VA maximum @ 28V AC/DC
- Contact Resistance: 50 milliohms maximum
- Insulation Resistance: 500 megohms minimum @ 500V DC
- Dielectric Strength: 500V AC minimum for 1 minute
- Mechanical Life: 100,000 operations minimum for specific circuits
- Electrical Life: 50,000 operations minimum
- Nominal Operating Force: 1.47N (long paddle, momentary), 1.18N (maintained)
- Contact Timing: Nonshorting, break-before-make
- Angle of Throw: 26°
- Toggle Material: Nickel plated brass
- Materials & Finishes: Bushing - nickel plated zinc alloy; Gasket - nitrile rubber
- Operating Temperature Range: -30°C through +85°C
- Vibration Resistance: 10 ~ 55Hz with peak-to-peak amplitude of 1.5mm
- Shock Resistance: 50G acceleration
- Mounting Torque: 30 ~ 3.98 Ib*in for threaded bushing
- Soldering: Wave and manual soldering recommended, automated cleaning possible
- Standards & Certifications: UL9AV-0, not tested for UL recognition or CSA certification
Buy the NKK B15KW – Reliable Toggle Switch for Industrial Applications
Upgrade your control systems with this reliable, compact toggle switch designed for PCB mounting in space-constrained environments. Featuring a sealed body construction to prevent contact contamination, it offers long mechanical and electrical life with a minimum of 50,000 operations. Ideal for low-current, logic-level circuits in industrial and electronic applications, its durable nickel-plated brass toggle, optional panel sealing bushing meeting IP65, and easy soldering options make it a versatile choice. Purchase online today and enhance your project’s reliability with ease.
Order your NKK Series B B15KW toggle switch today and ensure robust low-profile control for your electronic or industrial projects with durable and sealed design.
Frequently Asked Questions
Where can I buy NKK Switches B15KW?
You can click on the BUY or RFQ button to purchase B15KW from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part B15KW?
You can download the B15KW datasheet or visit the NKK Switches website for support.
Who is the manufacturer of B15KW?
NKK Switches
