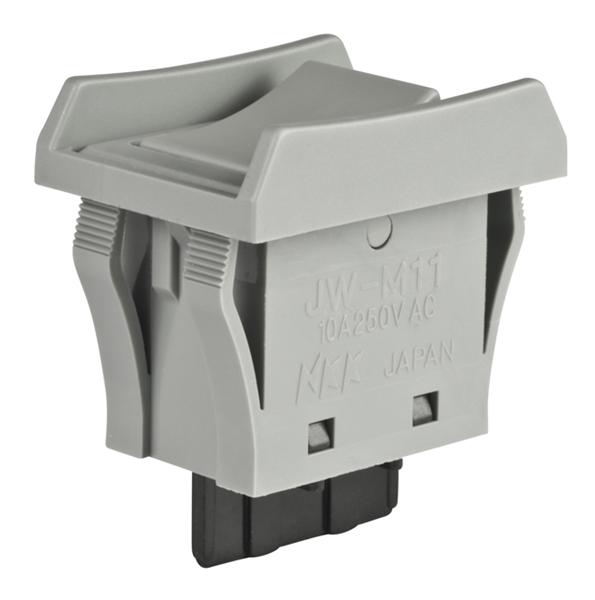

NKK Switches JWM11BHHH Power Rocker Switch
The power rocker switch features a snap-in design for secure installation, offering reliable on/off control suitable for various electronic and electrical applications. Constructed with high-quality materials, it ensures long-lasting durability and consistent performance. The switch supports high inrush current handling capacity of 10 and 16 Amps, making it ideal for demanding industrial and automation environments. Its compact size allows easy integration into control panels, providing smooth operation and insulation resistance for safe, efficient circuit control in diverse electrical systems.
NKK Switches JWM11BHHH Power Rocker Switch Specifications:
- Electrical Capacity: 10A @ 125/250V AC, 16A @ 125/250V AC
- Operating Temperature Range: -25°C to +70°C for JWM & JWL; -25°C to +85°C for panel seal versions
- Housing Material: Polyamide (UL94V-0), Case/Frame: Polyphenylene ether (UL94V-0)
- Contact Material: Silver alloy with silver plating
- Dielectric Strength: 2,000V AC minimum between contacts, 4,000V AC minimum between contacts & case
- Mechanical Life: 25,000 operations
- Electrical Life: 25,000 operations
- Nominal Operating Force: JWM & JWMW Single Pole 3.92N, Double Pole 7.84N; JWL Single Pole 5.00N, Double Pole 10.00N
- Angle of Throw: 26°
- Environmental Ratings: IP67 (panel seal versions), dust resistant interior seal
- Soldering & Mounting: Manual soldering, snap-in installation into panels of 0.8mm to 3.4mm thickness
- Standards & Certifications: UL94V-0, UL, CSA, VDE approved
- Certifications: UL, cULus recognized, VDE approval for specific models
- Inrush & Overload Ratings: JWM (TV-5) Inrush 111A peak, steady state 7.5A; JWL (TV-8) Inrush 163A peak, steady state 12A
Buy the NKK Series JW Power Rocker Switch: JWM11BHHH
Order the NKK series JW power rocker switch JWM11BHHH online now. Designed for durability and reliable on/off switching, supporting up to 16A with high inrush capacity. Its snap-in mounting ensures secure installation in control panels with panel thickness from 0.8mm to 3.4mm. Featuring dust-resistant interior seals and IP67 ratings for panel seal models, it withstands challenging environments while providing safe, efficient circuit control. Perfect for industrial applications requiring long-lasting, precise performance.
Get NKK series JW power rocker switch JWM11BHHH today—built for high inrush current handling and reliable control in demanding electrical environments.
Frequently Asked Questions
Where can I buy NKK Switches JWM11BHHH?
You can click on the BUY or RFQ button to purchase JWM11BHHH from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part JWM11BHHH?
You can download the JWM11BHHH datasheet or visit the NKK Switches website for support.
Who is the manufacturer of JWM11BHHH?
NKK Switches
