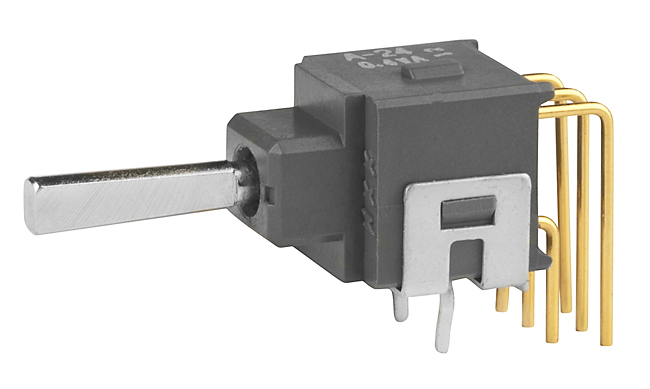

NKK Switches A24EH Subminiature Toggle Switch
This compact toggle switch is designed for space-saving and precise control in electronic devices, featuring a sealed body construction for contact protection. It supports low-voltage, low-current logic-level circuits with smooth actuation, enhanced contact stability, and reliable switching. The switch exhibits a mechanical life of at least 100,000 operations, with robust materials such as brass, nickel-plated, and antistatic polyamide. Suitable for PCB mounting, it withstands environmental stresses, including humidity and temperature variations, making it ideal for automation, control, and electronics applications.
NKK Switches A24EH Subminiature Toggle Switch Specifications:
- Electrical Capacity: 0.4VA max @ 28V AC/DC
- Contact Resistance: 50 milliohms max
- Insulation Resistance: 500 megohms min @ 500V DC
- Dielectric Strength: 500V AC for 1 minute
- Mechanical Life: 100,000 operations minimum
- Nominal Operating Force: 1.47N (momentary); 1.18N (maintained)
- Contact Timing: Nonshorting, break-before-make
- Materials & Finishes: Brass with bright nickel, antistatic polyamide, glass fiber reinforced polyamide
- Environmental: -30°C to +85°C, 90-95% humidity for 240 hours, vibration and shock resistance
- Soldering: Wave and manual soldering supported, automated cleaning compatible
Buy the NKK Series A Toggle: A24EH
Purchase the NKK Series A subminiature toggle switch A24EH online today and benefit from its compact size, sealed construction, and reliable switching performance. Perfect for space-constrained electronic applications, this switch offers high durability, low contact resistance, and environmental resistance, ensuring long-lasting operation. Its ease of PCB mounting and compatibility with automated soldering and cleaning processes make it ideal for modern control systems, automation, and instrumentation. Order now to enhance your electronic device with proven quality and dependable switching capabilities.
Buy NKK Series A toggle switch A24EH now and experience unmatched reliability and space-efficient performance in your electronics projects.
Frequently Asked Questions
Where can I buy NKK Switches A24EH?
You can click on the BUY or RFQ button to purchase A24EH from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part A24EH?
You can download the A24EH datasheet or visit the NKK Switches website for support.
Who is the manufacturer of A24EH?
NKK Switches
