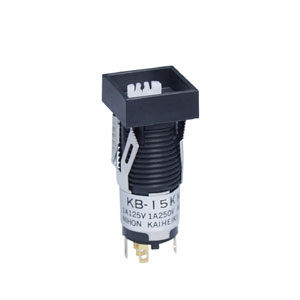

NKK Switches KB15KKG01 Miniature Pushbutton
This miniature illuminated pushbutton is ideal for control panels, offering compact size and built-in illumination. It provides reliable visual indication for automation and control purposes, featuring modern LED technology, durable construction, and easy installation. Designed with a snap-action mechanism, it ensures long life and consistent operation. Its panel-mounting design makes it suitable for various industrial environments. Available in multiple LED colors and cap options, it enhances operator visibility and system status indication, making it a versatile choice for control panels and automation interfaces.
NKK Switches KB15KKG01 Miniature Pushbutton Specifications:
- Body Diameter: 12mm
- LED Colors: Red, Amber, Green, White, Blue
- Illumination Type: Built-in LED
- Voltage Ratings: 1A @ 125/250V AC, 0.4VA @ 28V DC
- Material: Polycarbonate Lens, Polyamide Body
- Operating Temperature Range: -25°C to +50°C
- Mounting Type: Bushing or Snap-in Mounting
- Panel Thickness Compatibility: 0.5mm to 6.8mm
- Contact Resistance: 50 milliohms maximum
- Insulation Resistance: 1000 Megohms minimum @ 500V DC
- Dielectric Strength: 1000V AC minimum between contacts, 1500V between contacts and case
- Mechanical Life: 100,000 operations minimum
- Electrical Life: 100,000 operations minimum
- Operating Force: 0.98 to 2.45N for maintained, 0.98 to 1.96N for momentary
- Pretravel: 2.2mm; Overtravel: 0.8mm; Total Travel: 3.0mm
- Housing Material: UL94V-0 Polyamide
- Cap Material: Polycarbonate
- Environmental Conditions: -25°C to +50°C, 90-95% humidity
- Standards: UL Recognized, CSA Certified
Buy the NKK KB15KKG01 – Reliable Miniature Illuminated Pushbutton for Industrial Applications
Purchase the NKK miniature illuminated pushbutton today to enhance your control panel with reliable LED indication, durable construction, and easy installation. Suitable for automation, machinery, and control systems, this compact switch offers long-lasting performance with high electrical and mechanical life. Its panel-mount design ensures secure fixation, while multiple LED color options improve operator visibility. Its quality materials withstand industrial environments, making it the perfect component for precise and dependable control operations. Buy online now for quick delivery and seamless integration into your system.
Get NKK KB15KKG01 today—built for precision with durable illumination and panel mounting options for industrial control systems.
Frequently Asked Questions
Where can I buy NKK Switches KB15KKG01?
You can click on the BUY or RFQ button to purchase KB15KKG01 from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part KB15KKG01?
You can download the KB15KKG01 datasheet or visit the NKK Switches website for support.
Who is the manufacturer of KB15KKG01?
NKK Switches
