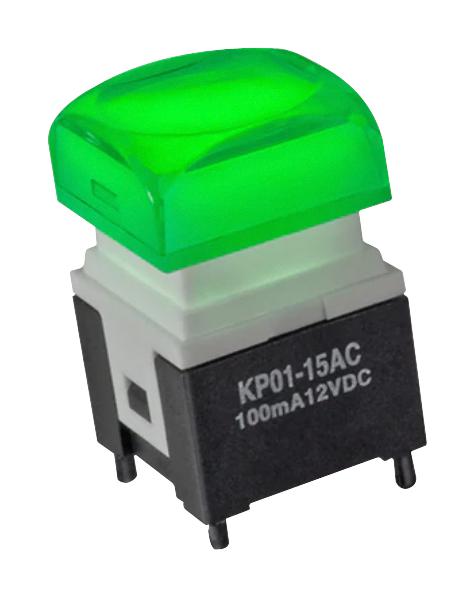

NKK Switches KP0115ANBKG03RGBP2SJB Miniature RGB Pushbutton Switch
The KP series miniature audio/video 4-pin RGB pushbutton switch offers a complete solution for broadcast panel applications. It features a 4.5mm stroke with a 1.9N actuation force, providing tactile feedback and reliable circuit transfer. The switch includes a unique actuation guide for positive indication and smooth, silent operation. Its super bright RGB LED enables vibrant, full-color illumination with unlimited color combinations. The non-tactile actuation mechanism ensures high durability. With an 11.6mm plunger and a 15.0mm square sculptured cap, the switch allows for flexible design in audio/video setups. Gold contacts rated at 100mA at 12VDC and straight PCB terminals ensure high reliability and long service life. An improved profile design facilitates soldering and installation.
NKK Switches KP0115ANBKG03RGBP2SJB Miniature RGB Pushbutton Switch Specifications:
- Electrical Capacity: 100mA @ 12V DC
- Contact Resistance: 200 milliohms maximum
- Insulation Resistance: 100 megohms minimum @ 250V DC
- Dielectric Strength: 1,000V AC between contacts for 1 minute; 1,500V AC between contacts & case for 1 minute
- Mechanical Life: 5,000,000 operations minimum
- Electrical Life: 5,000,000 operations minimum
- Actuation Force: 1.9N maximum (KPO1), 1.6N maximum (KPO2)
- Pretravel: 122” (3.1mm) (KPO1), 0.091” (2.3mm) (KPO2)
- Total Travel: 0.177” (4.5mm) (KPO1), 0.138” (3.5mm) (KPO2)
- Plunger Diameter: 9.2mm for 12.0mm cap, 11.6mm for 15.0mm & 17.4mm caps
- Housing Material: Polyacetal
- Contacts & Terminals: Gold over copper alloy, straight PC terminals
- Operating Temperature Range: -25°C to +50°C
- Humidity Resistance: 90–95% RH for 240 hours @ 40°C
- Vibration: 10–55Hz, peak-to-peak amplitude of 1.5mm for 1 minute
- Shock Resistance: 51G (500m/s²)
- Soldering: Wave and manual recommended processes, max peak temperature 270°C
- Certifications: Not UL or CSA process sealed
