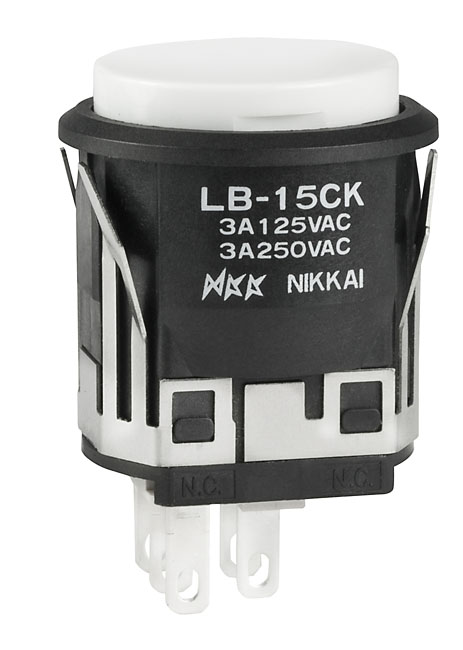

NKK Switches LB15CKW01B Illuminated Pushbutton Switch
The Series LB standard size illuminated pushbutton switch features snap-in mounting for ease of installation. It offers bright LED illumination options in various colors, including red, green, blue, amber, and white, with optional resistors for voltage regulation. Constructed with durable polycarbonate caps and polyamide housing, these switches are IP65 rated for panel sealing. They support high electrical capacity with ratings of 3A at 125/250V AC, and feature long electrical life, tactile feedback, and contact resistance below 50 milliohms. Ideal for industrial control, automation, and machinery panel applications.
NKK Switches LB15CKW01B Illuminated Pushbutton Switch Specifications:
- Housing Material: Polyamide (UL94V-0)
- Cap Material: Polycarbonate, Glossy Finish
- Illumination Colors: Red, Green, Blue, Amber, White
- Operating Temperature Range: -25°C to +50°C (Illuminated), -25°C to +70°C (Nonilluminated)
- Electrical Rating: 3A at 125/250V AC, 0.4VA at 28V AC/DC
- Contact Resistance: <50 milliohms
- Insulation Resistance: >200 megaohms @ 500V DC
- Dielectric Strength: 1,000V AC for 1 minute between contacts, 1,500V AC between contacts and case
- Mechanical Life: Minimum 1,000,000 operations (Momentary), 200,000 operations (Maintained)
- Nominal Operating Force: 4.0 N maximum
- Pretravel: 1.5 mm, Overtravel: 1.5 mm, Total Travel: 3.0 mm
- Panel Seal Rating: IP65 (IEC60529)
- Mounting: Snap-in with stainless steel clips
- Panel Cutout: 16.2mm x 16.2mm (square), with barriers available for larger panels
- Environmental Durability: 50G shock, 10-55Hz vibration with 1.5mm amplitude, humidity 95% for 96 hours at 40°C
- Certification: UL, cULus, CSA recognized with order marking, UL94V-0 housing and base
Buy the Buy Series LB Illuminated Pushbutton Part Number LB15CKW01B Online
Discover the high-quality Series LB illuminated pushbutton switch designed for industrial and control applications. Featuring snap-in mounting, bright LED illumination options, IP65 panel sealing, and a robust polycarbonate cap, this switch supports a high electrical capacity of 3A at 125/250V AC. Its durable construction ensures long electrical life, tactile feedback, and excellent resistance to environmental factors. Perfect for machinery panels, automation, and control systems, order online today and enhance your projects with this dependable, visually appealing switch.
Order your Series LB illuminated pushbutton LB15CKW01B today and ensure reliable, durable control for your industrial projects with bright LED illumination.
Frequently Asked Questions
Where can I buy NKK Switches LB15CKW01B?
You can click on the BUY or RFQ button to purchase LB15CKW01B from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part LB15CKW01B?
You can download the LB15CKW01B datasheet or visit the NKK Switches website for support.
Who is the manufacturer of LB15CKW01B?
NKK Switches
