NKK Switches KP0215ACBKG03RGBP2SJB RGB Pushbutton Switch
The KP series miniature audio/video RGB pushbutton switch offers a comprehensive solution for broadcast panels, featuring a 3.5mm stroke and 1.6N actuation force. Equipped with super bright RGB LEDs that produce vibrant full-color displays and unlimited color combinations, it provides positive circuit transfer indication through an actuation guide, ensuring smooth and silent operation. The switch is available with tactile, nontactile, or tactile/audible actuation options, and is designed with a 15.0mm square cap and 11.6mm plunger for flexible installation in audio/video devices, guaranteeing long-term reliability with gold contacts rated at 100mA at 12VDC.
NKK Switches KP0215ACBKG03RGBP2SJB RGB Pushbutton Switch Specifications:
- Actuation Force: 1.6N
- Travel: 3.5mm (0.138 inch)
- Plunger Size: 11.6mm
- Cap Size: 15.0mm square
- LED Colors: Red, Green, Blue with unlimited color spectrum
- Housing Material: Black plastic
- Contacts: Gold plated, 100mA @ 12V DC
- Contacts Resistance: 200 milliohms maximum
- Insulation Resistance: 100 megohms minimum @ 250V DC
- Dielectric Strength: 1,000V AC minimum between contacts, 1,500V AC between contacts & case
- Mechanical Life: 5,000,000 operations minimum
- Electrical Life: 5,000,000 operations minimum
- Operating Temperature Range: -25°C to +50°C
- Humidity Resistance: 90-95% for 240 hours at 40°C
- Vibration Resistance: 10 ~ 55Hz, peak-to-peak 1.5mm for 1 minute
- Shock Resistance: 51G acceleration
- Soldering: Wave and manual soldering compatible
- Standards & Certifications: UL94V-0 flammability noted

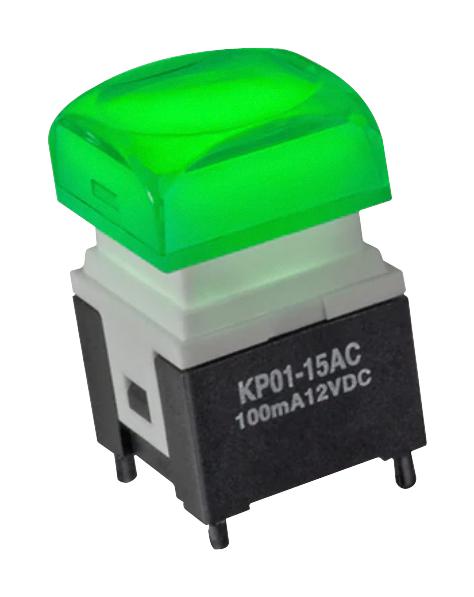

Buy the NKK KP – Reliable RGB Pushbutton Switch for Industrial Applications
Experience the high reliability and vibrant color options of the RGB pushbutton switch from the KP series. Its compact design with a 15.0mm square cap and 11.6mm plunger ensures easy integration into broadcast and multimedia equipment. The switch features super bright RGB LEDs capable of unlimited color combinations, providing clear circuit transfer indication with tactile or nontactile actuation. Rated for 100mA at 12VDC, it boasts a minimum lifespan of 5 million operations, making it ideal for professional broadcast and industrial control applications. Purchase online now for quick, dependable delivery.
Get NKK KP series RGB pushbutton today—designed for broadcast quality performance and long-lasting durability.
Frequently Asked Questions
Where can I buy NKK Switches KP0215ACBKG03RGBP2SJB?
You can click on the BUY or RFQ button to purchase KP0215ACBKG03RGBP2SJB from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part KP0215ACBKG03RGBP2SJB?
You can download the KP0215ACBKG03RGBP2SJB datasheet or visit the NKK Switches website for support.
Who is the manufacturer of KP0215ACBKG03RGBP2SJB?
NKK Switches
