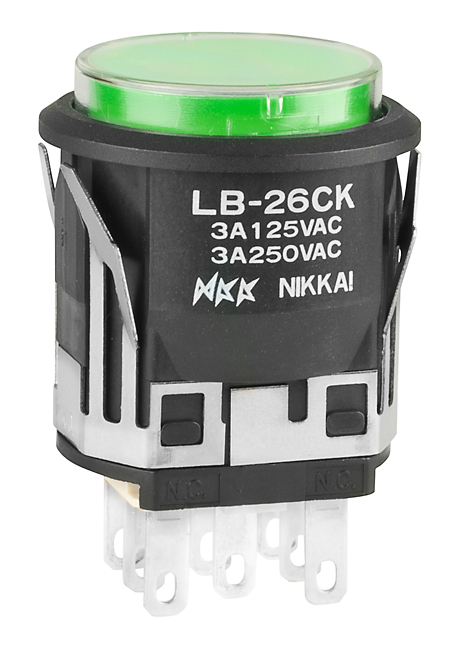

NKK Switches LB26CKW015FJF Illuminated Pushbutton
This standard size illuminated pushbutton switch features a snap-in mounting mechanism for easy installation and reliable operation in electronic and control systems. It is suitable for industrial equipment, automation controls, and instrumentation. The switch offers bright LED illumination options with various color and resistor configurations, including single and bi-color LEDs, ensuring clear visibility. Made from durable polycarbonate and GFR polyamide, it supports high-frequency switching and long electrical life, meeting industry standards like IEC60529 for IP65. Ideal for machinery panels and control panels requiring reliable, user-friendly operation.
NKK Switches LB26CKW015FJF Illuminated Pushbutton Specifications:
- Housing Material: Polycarbonate
- Base Material: GFR Polyamide
- Illumination: Bright LED, single or bi-color options
- LED Colors: Red, Amber, Green, Blue, White
- LED Voltage: 5V, 12V, 24V, 110V AC depending on model
- Switch Ratings: 3A @ 125V/250V AC, 0.4VA @ 28V AC/DC
- Contacts: Silver or gold-plated options
- Electrical Life: 200,000 operations minimum
- Mechanical Life: 1,000,000 operations
- Contact Resistance: 50 milliohms (silver), 100 milliohms (gold)
- Insulation Resistance: 200 Megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC between contacts, 1,500V AC contacts & case
- Environmental: Operating temp -25°C to +50°C (illuminated) / +70°C (non-illuminated); Humidity 95% for 96h at 40°C
- Installation: Snap-in with clips suitable for panel thickness 0.039” to 0.157”
- Standards & Certifications: Recognized under UL, CSA; IP65 panel sealed
- Dimensions: Approximate panel cutout 0.638” x 0.638” (16.2mm x 16.2mm)
Buy the NKK LB26CKW015FJF – Reliable Illuminated Pushbutton for Industrial Applications
Order the NKK LB26CKW015FJF illuminated pushbutton switch online today and ensure your control systems operate smoothly with high-quality, durable components. Featuring LED illumination in multiple colors, this snap-in switch offers easy installation, long electrical life, and industry-standard ratings for reliable performance. Perfect for machinery, automation, and control panels, it combines robust construction with user-friendly features. Don’t miss the opportunity to enhance your equipment's functionality—shop online now and enjoy fast delivery, competitive pricing, and trusted quality from a leading manufacturer.
Buy NKK LB26CKW015FJF now and experience unmatched reliability and performance for your control panel needs.
Frequently Asked Questions
Where can I buy NKK Switches LB26CKW015FJF?
You can click on the BUY or RFQ button to purchase LB26CKW015FJF from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part LB26CKW015FJF?
You can download the LB26CKW015FJF datasheet or visit the NKK Switches website for support.
Who is the manufacturer of LB26CKW015FJF?
NKK Switches
