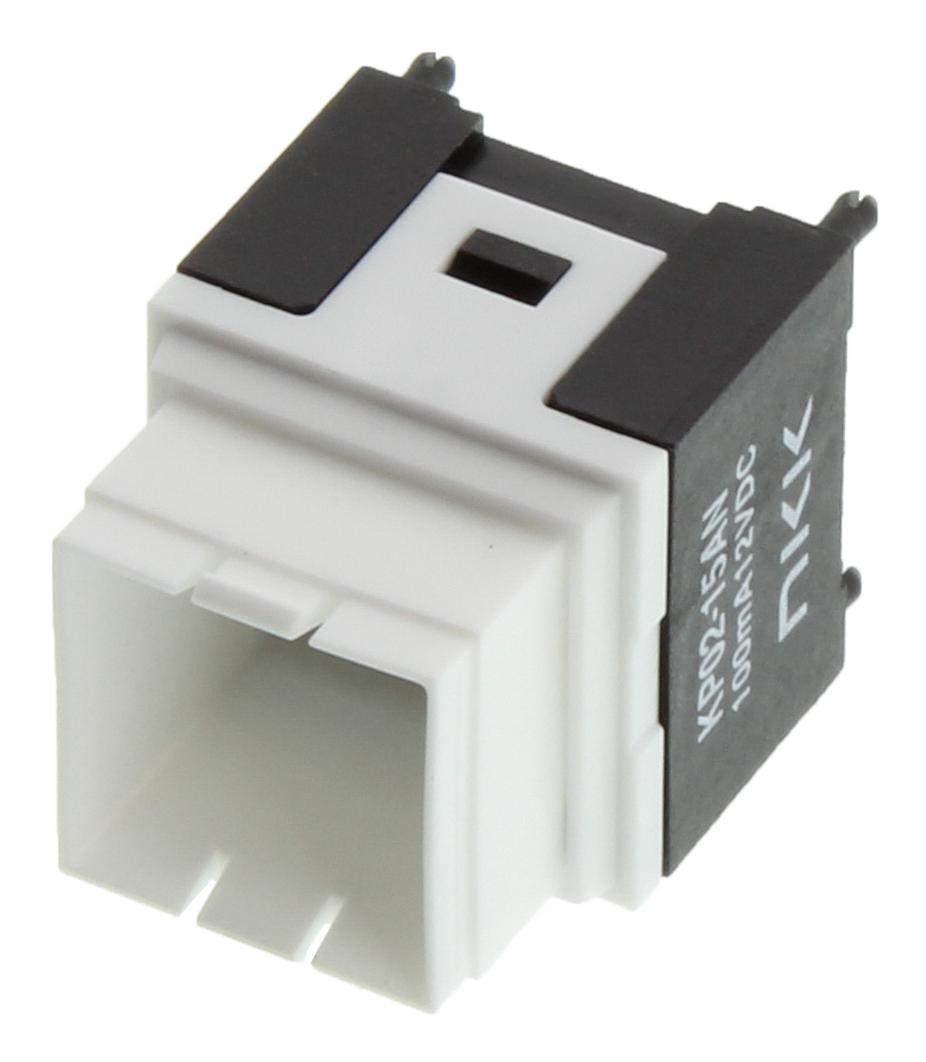

NKK Switches KP0215ANBKG036G Illuminated Pushbutton Switch
The KP Series single color illuminated pushbutton switch is designed for low-voltage, low-current applications in control panels, with bright LEDs in white, yellow, or blue colors. It features a shorter stroke of 3.5mm, smooth silent operation, and a compact height of 23.0mm. Dual gold-plated contacts offer high reliability with a minimum life of 5 million operations. Cap sizes include 15.0mm and 17.4mm with flat or sculptured caps, providing flexible design options for industrial control systems and automation tasks. The switch operates between -25°C and +50°C, ensuring durability under environmental stresses.
NKK Switches KP0215ANBKG036G Illuminated Pushbutton Switch Specifications:
- Electrical Capacity: 100mA @ 12V DC
- Contact Resistance: 200 milliohms maximum
- Insulation Resistance: 100 megohms minimum @ 250V DC
- Dielectric Strength: 1,000V AC between contacts, 1 minute; 1,500V AC between contacts & case, 1 minute
- Mechanical Life: 5,000,000 operations minimum
- Electrical Life: 5,000,000 operations minimum
- Nominal Operating Force: 1.6N
- Travel: Pretravel 0.091” (2.3mm); Overtravel 0.047” (1.2mm); Total Travel 0.138” (3.5mm)
- Materials & Finishes: Glass fiber reinforced PBT UL94V-0 for housing; Gold over copper alloy for movable contact; Brass with fin plating for stationary contacts
- Operating Temperature Range: -25°C to +50°C
- Humidity: 90 - 95% for 240 hours @40°C
- Vibration: 10-55Hz with peak-to-peak amplitude of 1.5mm traversing the frequency range for 1 minute
- Shock: 51G (500m/s²) in 6 directions
- Mounting Method: Cap installation force 1.6N; wave and manual soldering compatible
- Standards & Certifications: UL94V-0 for housing; not tested for UL or CSA certification
- LED Specifications: Bright LEDs with forward voltages of 3.2V, maximum forward current of 30mA, and ambient temperature range of -25°C to +50°C
Buy the NKK Switches KP Series Single Color Illuminated Pushbutton – Reliable Control Components for Industrial Applications
Upgrade your control panels with the KP Series illuminated pushbutton switch featuring super bright LEDs in white, yellow, or blue. This compact, durable switch offers a smooth silent actuation with a short 3.5mm stroke, high reliability rated for 5 million operations, and versatile design options including flat or sculptured caps. Perfect for industrial automation and equipment, it operates reliably within a temperature range of -25°C to +50°C, ensuring long-lasting performance. Order online today for quick delivery and excellent quality.
Order your NKK Switches KP Series single color illuminated pushbutton today and enhance your control panels with bright LEDs, long life, and reliable operation.
Frequently Asked Questions
Where can I buy NKK Switches KP0215ANBKG036G?
You can click on the BUY or RFQ button to purchase KP0215ANBKG036G from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part KP0215ANBKG036G?
You can download the KP0215ANBKG036G datasheet or visit the NKK Switches website for support.
Who is the manufacturer of KP0215ANBKG036G?
NKK Switches
