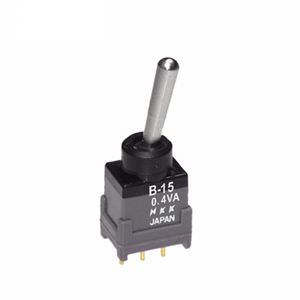

NKK Switches B15AP Subminiature Toggle Switch
This is a high-quality, space-saving subminiature toggle switch ideal for compact electronic devices. It offers reliable ON/OFF switching with sealed body construction, preventing contact contamination. Designed specifically for low-voltage and logic-level circuits, the switch features an antistatic superstructure, a durable nickel-plated brass toggle, and a locking lever option. Its panel seal mounting option meets IP65 standards, making it suitable for harsh environments. The switch supports soldering, automated cleaning, and withstands vibration, shock, and temperature extremes, ensuring optimal performance in miniature electronic systems.
NKK Switches B15AP Subminiature Toggle Switch Specifications:
- Electrical Capacity (Resistive Load): 0.4VA maximum @ 28V AC/DC
- Contact Resistance: 50 milliohms maximum
- Insulation Resistance: 500 megohms minimum @ 500V DC
- Dielectric Strength: 500V AC for 1 minute minimum
- Mechanical Life: 100,000 operations; 50,000 for some circuits
- Nominal Operating Force: 1.47N (long paddle toggle, momentary), 2.72N (short paddle toggle, momentary)
- Contact Timing: Nonshorting (break-before-make)
- Angle of Throw: 26°
- Materials & Finishes: Nickel-plated brass toggle, carbon-blended polyamide, nitrile rubber seals, glass fiber-reinforced polyamide body, phosphor bronze contacts with gold plating
- Operating Temperature Range: -30°C to +85°C
- Environmental Resistance: 90-95% humidity for 96 hours, vibration 10-55Hz, shock 50G
- Mounting Torque: 30-40 in-lb
- Soldering: Wave and manual soldering profiles available, automated cleaning compatible
- Certifications: UL9AV-0 (UL recognized), not tested for UL or CSA certification for toggles
- Panel Mount: Threaded bushing, panel seal option meets IP65
Buy the NKK Series B Toggle Switch: B15AP
Purchase the NKK Series B B15AP toggle switch online today and benefit from its compact size, sealed construction, and reliable switching performance. Ideal for space-constrained electronics, it features antistatic superstructure, IP65 panel mounting, and supports soldering and cleaning processes. Its durable materials ensure long-lasting operation under harsh conditions, including vibration, shock, and temperature variations. Enhance your electronic designs with this space-efficient, high-reliability toggle switch available for immediate online orders, delivering quality and performance for low-voltage, logic-level applications.
Order your NKK Series B B15AP toggle switch today and ensure reliable, sealed on/off control for your compact electronic projects.
