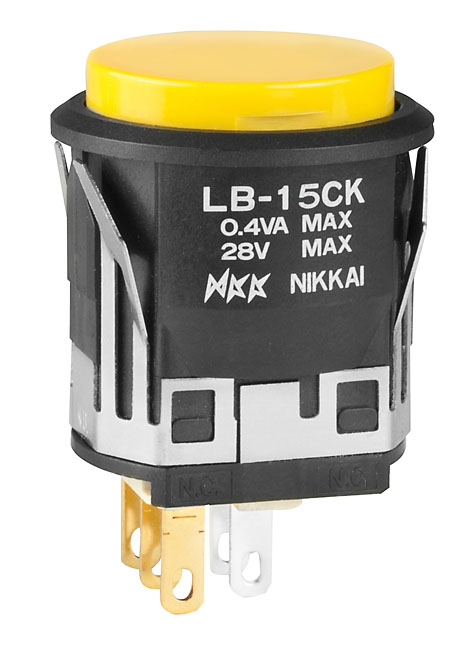

NKK Switches LB15CKG01E illuminated pushbutton switch

The illuminated pushbutton switch features a snap-in mounting for quick installation, offering bright surface illumination with multiple LED color options. Its robust construction with polycarbonate caps and stainless steel components ensures durability and long electrical life. Suitable for industrial controls, it provides high reliability with IP65 panel sealing, making it ideal for demanding environments. The switch supports various accessories, including protective guards, dust covers, and different lens configurations, enabling versatile applications across automation, machinery, and control panels. Its design emphasizes ease of use, safety, and visual signaling in complex systems.

Authorized Distributors
Source:DigiKey
Part No:LB15CKG01-E
Stock:9
Inv Date:06-17-2026
Price: Unit price: $34.04
Buy/RFQ:
Source:DigiKey
Part No:LB15CKG01-E
Stock:0
Inv Date:06-17-2026
Price: Unit price: $17.63
Buy/RFQ:
Part No:LB15CKG01-E
Stock:0
Inv Date:06-18-2026
Price: Unit price: $17.63
Buy/RFQ:
Part No:LB15CKG01-E
Stock:0
Inv Date:06-17-2026
Price: Unit price: $18.81
Buy/RFQ:
Part No:LB15CKG01-E
Stock:28
Inv Date:06-17-2026
Price: Unit price: $17.42
Buy/RFQ:

NKK Switches LB15CKG01E illuminated pushbutton switch Specifications:

  • Housing Material: Polycarbonate (UL94V-0)
  • Switch Type: Illuminated Pushbutton
  • Mounting: Snap-in
  • Electrical Ratings: 3A @ 125/250V AC, 0.4VA @ 28V AC/DC
  • Panel Seal: IP65 compliant
  • LED Colors: Red, Amber, Green, Blue, White
  • LED Types: Bright, Super Bright
  • Operating Temperature Range: -25°C to +50°C for Illuminated, -25°C to +70°C for Nonilluminated
  • Travel: Pretravel 1.5mm, Overtravel 1.5mm, Total Travel 3.0mm
  • Mechanical Life: 1,000,000 operations
  • Electrical Life: 200,000 operations
  • Contact Resistance: 50 milliohms for silver contacts, 100 milliohms for gold contacts
  • Insulation Resistance: 200MΩ minimum @ 500V DC
  • Dielectric Strength: 1000V AC between contacts, 1500V AC between contacts and case
  • Nominal Operating Force: 4.9N downward on cap, 52.95N on connector
  • Materials: Polyamide housing, stainless steel clips, copper or silver alloy contacts
  • Soldering: Manual, profile A recommended
  • Standards & Certifications: Recognized under UL and CSA when ordered with markings

Buy the NKK LB15CKG01E – Reliable Illuminated Pushbutton for Industrial Applications

Purchase the NKK LB15CKG01E illuminated pushbutton switch online today to ensure your control panels feature reliable illumination and easy installation. Designed with a snap-in mounting system, this switch offers superior durability and IP65 sealing for industrial environments. Available with various LED colors like red, green, and blue, it provides excellent visual signaling capabilities. Its long mechanical and electrical life make it suitable for demanding automation systems and machinery controls. Secure your order now and improve operational safety and efficiency with this high-quality industrial component.

Order your NKK Series LB15CKG01E illuminated switch today and enhance your control systems with dependable, easy-to-install operation.

Frequently Asked Questions

Where can I buy NKK Switches LB15CKG01E?

You can click on the BUY or RFQ button to purchase LB15CKG01E from an authorized NKK Switches distributor.

How do I troubleshoot issues or seek technical support for part LB15CKG01E?

You can download the LB15CKG01E datasheet or visit the NKK Switches website for support.

Who is the manufacturer of LB15CKG01E?

NKK Switches
