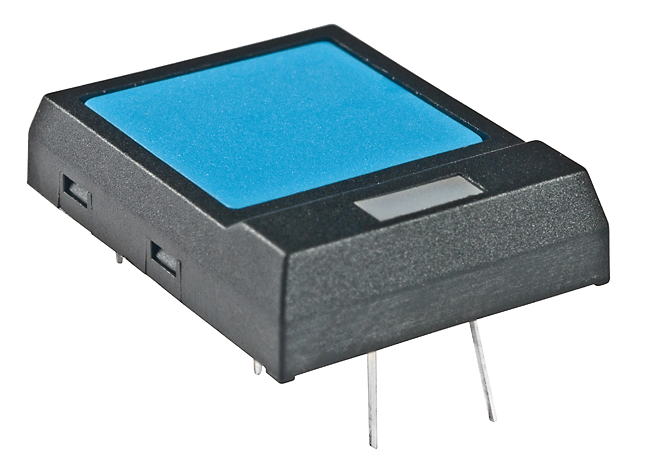

NKK Switches JF15RP1GC Illuminated Tactile Switch
The ultra-thin illuminated tactile switch offers a low-profile design with integrated LED illumination, suitable for compact electronic devices. Features include a crisp tactile dome contact for positive feedback, a rubber seal construction to prevent contact contamination, and compatibility with automated soldering and cleaning processes. Available in various actuator types and LED colors, it provides reliable operation with minimal force, short stroke, and space-saving dimensions. Designed for low-voltage, logic-level circuits, it ensures long life and high reliability for industrial and consumer electronics.
NKK Switches JF15RP1GC Illuminated Tactile Switch Specifications:
- Profile height: 0.224 inches (5.7mm)
- Actuator types: square, round, sculptured
- LED colors: red, green, yellow, blue, orange, gray
- LED current: 30-40mA
- Forward voltage: 1.77V - 2.3V
- Nominal operating force: 3.0N (flush), 2.0N (sculptured)
- Travel: 0.016 inches (0.4mm) for flush, 0.031 inches (0.8mm) for sculptured
- Construction: polyamide housing, glass fiber reinforced, rubber seal
- Electrical capacity: 50mA @ 24V DC, 500MΩ insulation resistance
- Impact resistance: 50G, shock resistant, withstands 500,000 cycles
- Operating temperature: -13°F to +158°F (-25°C to +70°C)
- Humidity: 90-95% for 96 hours @ 104°F
- Soldering: wave, manual, automated cleaning compatible
- Terminals: straight PC, crimped, or strapped
- Standards: designed for low voltage, low current, logic circuit applications
Buy the NKK JF15RP1GC – Reliable Illuminated Tactile Switch for Industrial Applications
Enhance your electronic device with the NKK illuminated tactile switch. Featuring a low-profile design, integrated LEDs in multiple colors, and reliable tactile feedback, this switch ensures long-lasting performance. Its sealed construction and compatibility with automated soldering and cleaning make it ideal for industrial, medical, and consumer electronics. Easy to mount on standard PCB grids, it provides precise control in compact spaces. Order online today to benefit from swift delivery and superior quality in your manufacturing or repair projects.
Buy NKK JF15RP1GC now and experience unmatched reliability and performance in space-saving, illuminated tactile switches for your electronic projects.
Frequently Asked Questions
Where can I buy NKK Switches JF15RP1GC?
You can click on the BUY or RFQ button to purchase JF15RP1GC from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part JF15RP1GC?
You can download the JF15RP1GC datasheet or visit the NKK Switches website for support.
Who is the manufacturer of JF15RP1GC?
NKK Switches
