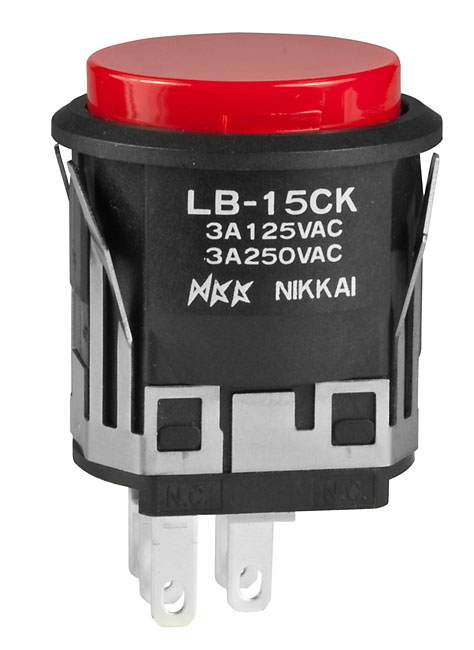

NKK Switches LB15CKW01CJ Illuminated Pushbutton Switch
The standard size illuminated pushbutton switch features a snap-in mounting mechanism for quick installation in control panels and equipment. Designed for durability, it offers full surface illumination with bright LEDs in various colors, including red, amber, green, and blue. The switch includes a latchdown feature, tactile and audible feedback, and a long electrical life suitable for demanding industrial applications. Its rugged housing is made of polycarbonate, with stainless steel clips ensuring secure panel mounting. Compatible with different LED and lamp options, it supports IP65 panel sealing for environmental protection.
NKK Switches LB15CKW01CJ Illuminated Pushbutton Switch Specifications:
- Housing Material: Polycarbonate
- Housing Color: Black
- Mounting: Snap-in
- Illumination: Bright LEDs (Red, Amber, Green, Blue)
- LED Voltage: 5V, 12V, 24V options available
- Electrical Capacity: 3A @ 125V AC, 250V AC; 0.4VA @ 28V AC/DC
- Contact Resistance: 50 milliohms maximum for silver, 100 milliohms maximum for gold
- Insulation Resistance: 200 megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC contact to case, 1-minute test
- Mechanical Life: 1,000,000 operations minimum
- Electrical Life: 200,000 operations minimum
- Travel: Pretravel 0.059 inches (1.5mm), Overtravel 0.059 inches (1.5mm), Total travel 0.118 inches (3.0mm)
- Operating Temperature Range: -25°C to +50°C for illuminated, -25°C to +70°C for non-illuminated
- Environmental: Humidity up to 95% Rh for 96 hours @ 40°C
- Standards & Certifications: UL, cULus, CSA recognized; panel sealing IP65
- Switch Terminals: Solder lug and .110” quick connect, epoxy sealed
Buy the NKK Series LB Illuminated Pushbutton Switch: LB15CKW01CJ
Experience the durability and high performance of the NKK Series LB illuminated pushbutton switch. Featuring snap-in mounting, full surface LED illumination, and IP65 sealing, it is ideal for industrial control panels. Available in various LED colors and with a long electrical life, this switch ensures reliable operation even in harsh environments. Its easily accessible terminals and robust polycarbonate housing make installation straightforward. Enhance your control system by ordering this versatile, high-quality switch online today, and benefit from quick delivery and trusted performance standards.
Order your NKK Series LB LB15CKW01CJ illuminated pushbutton switch today and give your control panels reliable, durable operation with full surface LED illumination.
Frequently Asked Questions
Where can I buy NKK Switches LB15CKW01CJ?
You can click on the BUY or RFQ button to purchase LB15CKW01CJ from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part LB15CKW01CJ?
You can download the LB15CKW01CJ datasheet or visit the NKK Switches website for support.
Who is the manufacturer of LB15CKW01CJ?
NKK Switches
