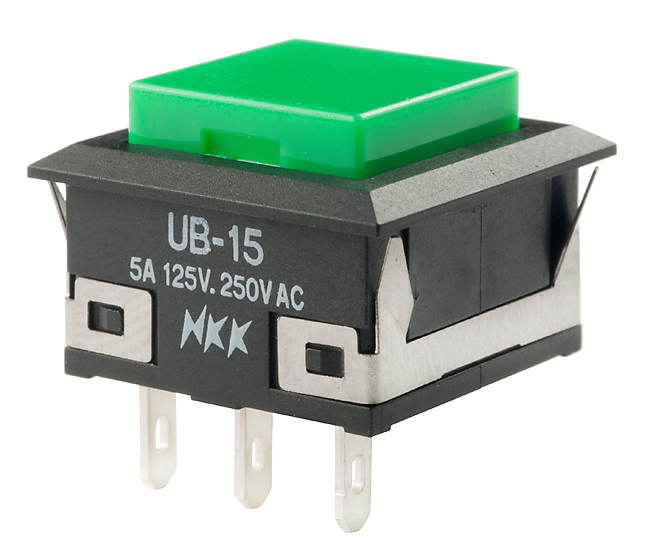

NKK Switches UB15KKW01NF Illuminated Pushbutton Switch
Low profile illuminated pushbutton switch with PC mounting and solder terminals. Suitable for compact electronic assemblies and control panels. Features bright LED illumination in red, green, amber, blue, or white options with full face or spot lighting. Designed for reliable operation with quick-make, quick-break contacts, and minimal arcing. Constructed with a glass fiber reinforced polyamide housing, stainless steel components, and phosphor bronze contacts with gold or silver plating, ensuring durability and high electrical standards. Ideal for industrial control applications, featuring a snap-acting mechanism and versatile mounting options for tight spaces.
NKK Switches UB15KKW01NF Illuminated Pushbutton Switch Specifications:
- Switch Type: Illuminated pushbutton
- Mounting: PC panel mount, snap-in frame
- Housing Material: Glass fiber reinforced polyamide (UL94V-0)
- Contact Resistance: 50 milliohms maximum for silver, 100 milliohms maximum for gold
- Insulation Resistance: 200 megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC (contacts to case) for 1 minute
- Electrical Capacity: 5A @ 125/250V AC, 0.4VA max @ 28V AC/DC
- Operating Temperature Range: -25°C to +50°C
- LED Colors Available: Red, Amber, Green, White, Blue
- LED Forward Voltage: 1.85V (Red), 2.0V (Amber), 3.2V (Green, Blue, White)
- LED Forward Current: 20mA (typical), Peak 30mA
- Durability: 1,000,000 operations min (momentary), 200,000 (alternate action)
- Switch Travel: Pretravel 1.7mm, Overtravel 0.6mm, Total 2.3mm
- Environmental: Humidity up to 95% for 96 hours, shock 50G, vibration 3Hz-55Hz
- Certifications: UL, cULus, CSA recognized when ordered with markings
Buy the NKK UB15KKW01NF – Reliable Control Switch for Industrial Applications
Experience the durability and versatility of this compact illuminated pushbutton switch. Perfect for industrial control panels and electronic assemblies, it features bright LED options in multiple colors, easy PCB snap-in mounting, and reliable electrical performance. Crafted with high-quality materials, including UL94V-0 rated housing and gold or silver-plated contacts, ensuring longevity and consistent operation. Whether you need momentary or alternate action circuits, this switch provides precise actuation, minimal arcing, and excellent environmental resistance. Order online now for fast delivery and trusted performance.
Order your NKK Series UB15KKW01NF illuminated pushbutton today and give your control panels the dependable quality they deserve.
Frequently Asked Questions
Where can I buy NKK Switches UB15KKW01NF?
You can click on the BUY or RFQ button to purchase UB15KKW01NF from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part UB15KKW01NF?
You can download the UB15KKW01NF datasheet or visit the NKK Switches website for support.
Who is the manufacturer of UB15KKW01NF?
NKK Switches
