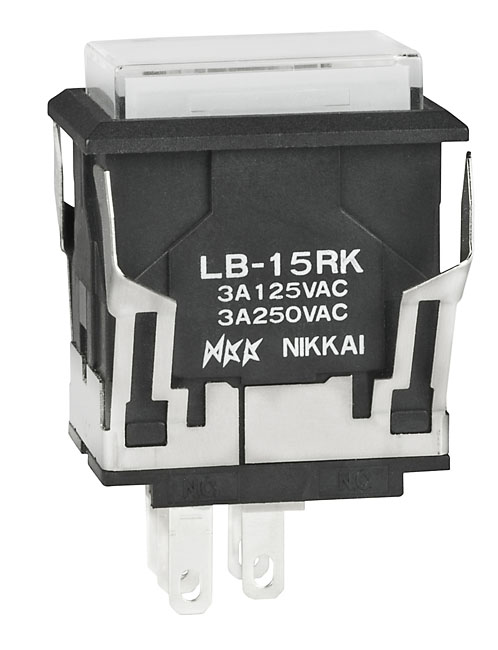

NKK Switches LB15RKW015C24JB Illuminated Pushbutton Switch
A standard size illuminated pushbutton switch designed for snap-in installation. Suitable for various electronic controls and panels, providing visual indication when activated.
NKK Switches LB15RKW015C24JB Illuminated Pushbutton Switch Specifications:
- Electrical Capacity (Resistive Load): 3A @ 125V AC or 3A @ 250V AC, 0.4VA max. @ 28V AC/DC
- Contact Resistance: 50 milliohms max. for silver, 100 milliohms max. for gold
- Insulation Resistance: 200 megohms min. @ 500V DC
- Dielectric Strength: 1,000V AC minimum between contacts for 1 minute; 1,500V AC minimum between contacts & case for 1 minute
- Mechanical Life: 1,000,000 operations min.
- Electrical Life: 200,000 operations min.
- Nominal Operating Force: 4.9N maximum downward force on cap
- Contact Timing: Nonshorting, break-before-make
- Travel: Pretravel 0.059” (1.5mm); Overtravel 0.059” (1.5mm); Total Travel 0.118” (3.0mm)
- Materials & Finishes: Housing - Glass fiber reinforced polyamide UL94V-0; Snap-in Frame - Stainless steel; Movable Contact - Silver alloy or copper with gold plating; Stationary Contacts - Silver alloy or copper with gold plating; Base - Liquid crystal polymer UL94V-0; Switch Terminals - Phosphor bronze with silver or gold plating
- Environmental Data: Operating Temperature Range -25°C to +50°C for illuminated, -25°C to +70°C for non-illuminated; Humidity - 90-95% for 96 hours @ 40°C; Vibration - 10-55Hz with peak-to-peak amplitude of 1.5mm over 1 min; Shock - 50G acceleration
- Installation: Cap Installation Force 3.92N, Quick Connect Force 52.95N, Soldering Time & Temp.: Manual soldering as per Profile A
- Standards & Certifications: UL Recognized, CSA Certified, Flammability Standards UL 94V-0
Buy the NKK Series LB Illuminated Pushbutton Switch: LB15RKW015C24JB
Purchase the NKK Series LB illuminated pushbutton switch LB15RKW015C24JB online today. Ensure reliable circuit control with bright LED illumination, long-lasting electrical operation, and easy snap-in mounting. Designed for panels of various thicknesses, it features stable electrical ratings, environmental resilience, and compliance with safety standards. Perfect for industrial, commercial, or electronics applications, this switch offers quick installation, superior durability, and a professional appearance. Order now to improve your control systems with a high-quality, dependable component engineered for long-term performance and safety.
Order your NKK Series LB illuminated pushbutton switch LB15RKW015C24JB today and give your projects the dependable quality they deserve.
