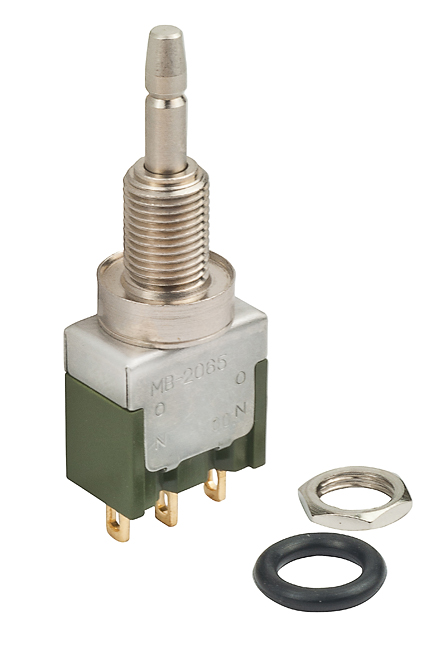

NKK Switches MB2065LD3G01 Miniature Pushbutton Switch
This miniature pushbutton switch features high durability, splashproof design with sealing options, and multiple actuation types such as momentary and alternate. It is suitable for compact electronic applications requiring reliable switching with excellent insulation and chemical resistance. Employs an over-center actuator mechanism to reduce sparking, increasing contact life. The device has rated capacities of 6A @ 125V AC and 3A @ 250V AC, with corrosion-resistant silver or gold contact materials. It offers robust construction, high dielectric strength, and various mounting options including threaded and snap-on bushings for versatile installation. Suitable for industrial, automation, control panels, and electronic device applications requiring durability and safety in harsh environments.
NKK Switches MB2065LD3G01 Miniature Pushbutton Switch Specifications:
- Rated 6A @ 125V AC and 3A @ 250V AC
- Max capacity 0.4VA @ 28V AC/DC
- Insulation Resistance: 1,000 Megohms @ 500V DC
- Contact Resistance: 10 milliohms max for silver, 20 milliohms max for gold
- Dielectric Strength: 1,000V AC between contacts for 1 minute, 1,500V AC between contacts and case for 1 minute
- Mechanical Life: 100,000 operations for splashproof models, 150,000 for others
- Electrical Life: 50,000 operations for silver, 100,000 for gold
- Operating Temperature Range: -30°C to +85°C
- Vibration Resistance: 10-55Hz with 1.5mm amplitude for 2 hours
- Shock Resistance: 50G acceleration in 6 directions
- Materials: Brass with nickel plating, polyacetal case, silver or gold contacts
- Mounting: Threaded with keyway, snap-on options, panel thickness up to 0.154 inch
- Environmental IEC compliance: UL94V-0 case, splashproof variants with D3 and B3 bushings, IP67 equivalents in D1 and D3 bushings
- Standards & Certifications: UL Listed, CSA Certified upon ordering with marking
- Soldering & assembly: Wave soldering, manual soldering compatible, epoxy sealed terminals
Buy the NKK MB2065LD3G01 – Reliable Miniature Pushbutton for Industrial Applications
Order the NKK Miniature Pushbutton Switch MB2065LD3G01 online now for reliable performance in harsh environments. Designed with splashproof features, multiple actuation options, and robust contact materials, this switch is perfect for industrial, automation, and electronic device applications. Its high current ratings, excellent insulation, and sealing options ensure long-lasting durability and safety. Easily install with threaded or snap-on bushings. Secure your project with a proven switch that guarantees high durability, precise operation, and compliance with relevant standards. Buy online today for fast delivery and peace of mind.
Get NKK MB2065LD3G01 today—built for precision and long-lasting durability in industrial control systems.
Frequently Asked Questions
Where can I buy NKK Switches MB2065LD3G01?
You can click on the BUY or RFQ button to purchase MB2065LD3G01 from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part MB2065LD3G01?
You can download the MB2065LD3G01 datasheet or visit the NKK Switches website for support.
Who is the manufacturer of MB2065LD3G01?
NKK Switches
