NKK Switches UB215KKW01N4JA Illuminated Pushbutton
The low profile illuminated pushbutton switch is designed for PCB and soldering applications, offering a compact form factor perfect for space-constrained environments. It features built-in illumination, enhancing visibility in various operational settings. The switch’s durable construction incorporates high-quality materials including polyamide and stainless steel, ensuring reliable performance. It supports multiple lighting colors, including red, amber, and green, with options for single or bicolor LEDs. Ideal for industrial controls, automation systems, and panel configurations requiring space-efficient, illuminated switching solutions.
NKK Switches UB215KKW01N4JA Illuminated Pushbutton Specifications:
- Electrical Capacity: 5A @ 125/250V AC, 5A @ 30V DC
- Power Level: 0.4VA maximum @ 28V AC/DC
- Contact Resistance: 50 milliohms maximum for silver, 100 milliohms maximum for gold
- Insulation Resistance: 200 megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC minimum between contacts for 1 minute; 1,500V AC minimum between contacts & case for 1 minute
- Mechanical Life: 1,000,000 operations minimum for momentary, 200,000 for alternate action
- Operating Temperature Range: -25°C to +50°C for illuminated, -25°C to +70°C for non-illuminated
- Dimensions: Compact size suitable for panel mounting, dimensions vary by model
- Materials: Housing/Bezel - UL94V-0 polyamide; Contacts - silver alloy or copper with gold plating
- Mounting Type: PCB or solder lug options
- Switch Type: Snap-acting contact mechanism; pretravel 1.7mm; overtravel 0.6mm; total travel 2.3mm
- Environmental: Humidity 90-95% 240 hours @40°C; vibration and shock resistance according to standards
- Certifications: UL Recognized (File No. E44145); UL94V-0 flammability compliant

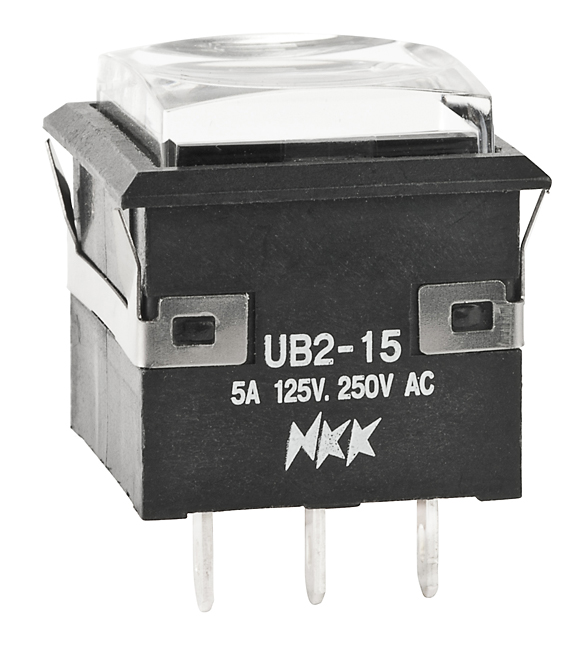

Buy the Buy NKK Low Profile Pushbutton Part Number UB215KKW01N4JA Online
Purchase the NKK illuminated pushbutton switch online for your automation or control panel needs. Features include built-in LEDs, space-saving design, durable materials, and reliable performance. Ideal for industrial applications requiring quick actuation with enhanced visibility. Compact size fits in tight spaces, and multiple LED options provide clear indicator status. Easy to install via PCB or solder lug mounting. Upgrade your control system with this high-quality, long-lasting switch that ensures safety, visibility, and operational efficiency in demanding environments.
Get NKK UB215KKW01N4JA today—built for space-efficient control panels with reliable illumination and long-lasting durability.
Frequently Asked Questions
Where can I buy NKK Switches UB215KKW01N4JA?
You can click on the BUY or RFQ button to purchase UB215KKW01N4JA from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part UB215KKW01N4JA?
You can download the UB215KKW01N4JA datasheet or visit the NKK Switches website for support.
Who is the manufacturer of UB215KKW01N4JA?
NKK Switches
