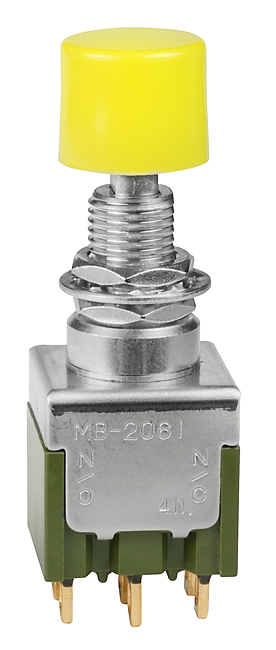

NKK Switches MB2061SD1G01CE Miniature Pushbutton Switch
This miniature pushbutton switch features high reliability and versatile operation suited for circuit control and user interface applications. It incorporates a durable metal frame, high-insulating barriers, and epoxy sealed terminals for contamination resistance. The switch supports a 6A @ 125V AC and 3A @ 250V AC power rating, with a maximum operating temperature of 85°C. It offers momentary and alternate action modes, with a plunger travel of approximately 0.071 inches. Designed for ease of installation with screw-on or snap-on caps, it ensures long service life with up to 100,000 electrical operations. Certification includes UL and CSA recognition.
NKK Switches MB2061SD1G01CE Miniature Pushbutton Switch Specifications:
- Power Rating: 6A @ 125V AC and 3A @ 250V AC, maximum 0.4VA @ 28V DC
- Contact Resistance: 10 milliohms max for silver, 20 milliohms for gold
- Insulation Resistance: Minimum 1,000 megohms @ 500V DC
- Dielectric Strength: 1,000V AC between contacts, 1,500V AC between contacts and case, for 1 minute
- Mechanical Life: 100,000 operations
- Electrical Life: 50,000 operations for silver, 50,000 for gold at rated currents
- Operating Temperature Range: -30°C to +85°C
- Plunger Travel: Approximately 0.071 inches
- Mounting: Screw-on or snap-on caps, with optional splashproof bushings
- Materials: Brass with nickel plating, polyacetal case, epoxy sealed terminals
- Certification: UL and CSA recognized
Buy the Buy NKK Miniature Pushbutton Part Number MB2061SD1G01CE Online
Order the NKK Miniature Pushbutton Switch MB2061SD1G01CE online today to benefit from dependable operation, high durability, and easy installation. Perfect for circuit control and user interface applications, it features epoxy sealed terminals for contamination resistance and supports a 6A AC current rating. Its ergonomic design includes screw-on or snap-on caps, with optional splashproof bushings for added protection. Ensure smooth operation and long service life with this certified and versatile pushbutton switch, ideal for industrial and electronic device projects.
Buy NKK MB2061SD1G01CE now and experience unmatched reliability and performance with compact design and high switching capacity.
Frequently Asked Questions
Where can I buy NKK Switches MB2061SD1G01CE?
You can click on the BUY or RFQ button to purchase MB2061SD1G01CE from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part MB2061SD1G01CE?
You can download the MB2061SD1G01CE datasheet or visit the NKK Switches website for support.
Who is the manufacturer of MB2061SD1G01CE?
NKK Switches
