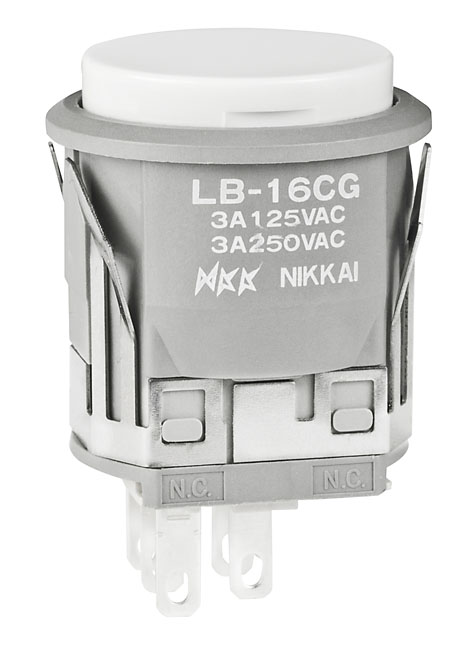

NKK Switches LB16CGW01B standard size pushbutton switch
The standard size illuminated pushbutton switch features snap-in mounting for convenient panel installation, offering bright illumination options with LED, neon, or incandescent lamps. It has a durable polycarbonate housing, sealed design meeting IP65 ratings, and multiple color and lens choices for clear indication and enhanced visibility. Electrical ratings include 3A at 125V/250V AC with low contact resistance, and extended mechanical and electrical life cycles. Suitable for industrial control panels and automation systems, it ensures reliable operation under harsh environments with environmental sealing. Compatible with various switch accessories, such as protective guards and dust covers, for customized applications.
NKK Switches LB16CGW01B standard size pushbutton switch Specifications:
- Housing Material: Polycarbonate (UL94V-0)
- Mounting: Snap-in
- Illumination: LED, Neon, or Incandescent lamps
- Lens Colors: Red, Green, Amber, Blue, White, Clear
- Contact Resistance: 50 milliohms maximum for silver; 100 milliohms maximum for gold
- Insulation Resistance: 200 megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC between contacts for 1 minute; 1,500V AC between contacts & case for 1 minute
- Electrical Capacity: 3A @ 125/250V AC, 0.4VA max. @ 28V AC/DC
- Mechanical Life: 1,000,000 operations
- Electrical Life: 200,000 operations
- Operating Temperature Range: -25°C to +50°C for illuminated, -25°C to +70°C for non-illuminated
- Panel Cutout: 0.638” x 0.638” (16.2mm x 16.2mm)
- Panel Thickness: 0.039” ~ 0.157” (1.0 ~ 4.0mm)
- Ingress Protection: IP65 (IEC60529)
- Dimensions: Standard size with compact profile, designed for control panels
- Switch Terminals: Solder lug and .110” quick connect, epoxy sealed
Buy the Buy NKK Switches Standard Size Pushbutton Part Number LB16CGW01B Online
Enhance your control panel with the reliable and brightly illuminated pushbutton switch. Featuring snap-in mounting, IP65 sealing, and multiple LED color options, this switch is tailored for industrial environments. Constructed from durable polycarbonate with sealed terminals, it offers high electrical capacity and an extended life cycle. The switch’s compact design fits standard panel cutouts, simplifying installation and maintenance. Whether for automation, machinery, or control systems, buy online now to ensure seamless integration and robust operation in demanding conditions.
Buy NKK Switches LB16CGW01B now and experience unmatched reliability and performance in industrial control applications.
Frequently Asked Questions
Where can I buy NKK Switches LB16CGW01B?
You can click on the BUY or RFQ button to purchase LB16CGW01B from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part LB16CGW01B?
You can download the LB16CGW01B datasheet or visit the NKK Switches website for support.
Who is the manufacturer of LB16CGW01B?
NKK Switches
