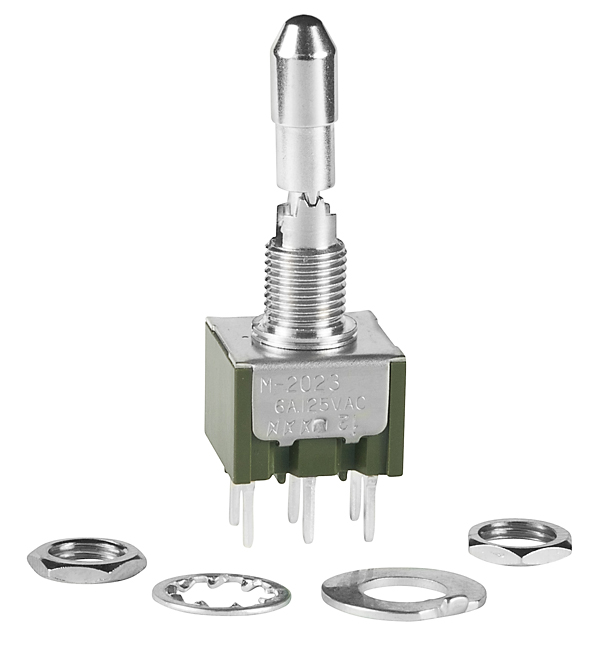

NKK Switches M2023LL1W03 Miniature Toggle Switch
Miniature toggle switch with multi-function capabilities, suitable for compact electronic applications. Features include high insulation resistance, robust construction with brass, stainless steel, and polycarbonate components, and multiple circuit configurations such as SPST, DPST, and DPDT. Rated for 6A at 125V AC and 3A at 250V AC, with dual ratings in power and logic circuits. Solder lug and quick connect terminals ensure secure wiring, while splashproof options provide environmental sealing. Designed for durability with up to 100,000 mechanical operations and compliance with UL and CSA standards. Ideal for control panels, instrumentation, and electronic devices requiring reliable switching functionality.
NKK Switches M2023LL1W03 Miniature Toggle Switch Specifications:
- Electrical Capacity (Resistive Load): 6A @ 125V AC, 3A @ 250V AC
- Logic/Power Dual Rating: 6A @ 125V AC & 3A @ 250V AC, 0.4VA max @ 28V AC/DC
- Contact Resistance: 10 milliohms max for silver, 20 milliohms max for gold
- Insulation Resistance: 1,000 megohms min @ 500V DC
- Dielectric Strength: 1,000V AC minimum between contacts for 1 min, 1,500V between contacts and case for 1 min
- Mechanical Life: 100,000 operations minimum; 50,000 for splashproof models
- Electrical Life: 25,000 operations min for silver contacts, 50,000 for gold contacts
- Temperature Rating: -30°C to +85°C
- Operating Temp Range: -30°C through +85°C
- Vibration: 10 Hz to 55 Hz with peak-to-peak amplitude of 1.5mm over 1 minute
- Shock: 50G acceleration, tested in 6 directions
- Sealing: Splashproof options with IP67 IEC60529 standard
- Materials: Brass with chrome plating, stainless steel, polycarbonate, zinc/chromate plating
- Mounting Torque: 3.0Nm for large bushings, 1.5Nm and 0.7Nm for others
- Soldering: Wave or manual soldering according to profile, lever in OFF position during soldering
- Standards & Certifications: UL recognized and CSA certified with markings, UL94V-0 case rating
Buy the NKK Series M Toggle: M2023LL1W03
Purchase the NKK series M toggle switch online today and enjoy a reliable, durable control component rated for 6A at 125V AC. Perfect for compact electronic setups, these switches offer multiple circuit configurations including SPST, DPST, and DPDT. With splashproof options and robust materials like brass, stainless steel, and polycarbonate, they ensure long-lasting performance. Easy to install with secure solder lug or quick connect terminals, and compliant with UL and CSA standards, making them the ideal choice for demanding control and instrumentation applications.
Get NKK M2023LL1W03 toggle switch today—built for durability with reliable multi-function operation in compact applications.
Frequently Asked Questions
Where can I buy NKK Switches M2023LL1W03?
You can click on the BUY or RFQ button to purchase M2023LL1W03 from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part M2023LL1W03?
You can download the M2023LL1W03 datasheet or visit the NKK Switches website for support.
Who is the manufacturer of M2023LL1W03?
NKK Switches
