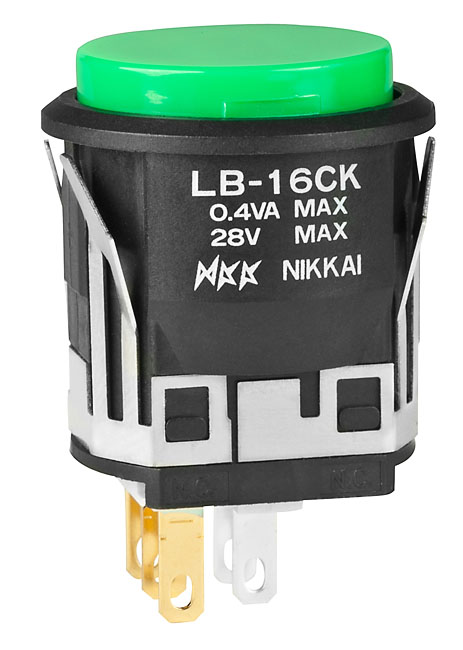

NKK Switches LB16CKG01F Illuminated Pushbutton Switch
The standard size illuminated pushbutton switch with snap-in mounting offers easy installation for control panels. It features bright LED illumination, a durable polycarbonate cap, and reliable snap-action contacts ensuring long electrical life. Suitable for various industrial control applications, this switch supports momentary and maintained circuits with rated 3A at 125/250V AC. It includes options for different LED colors, housing in black, and waterproof panel-sealed models meeting IP65 standards, making it ideal for rugged environments requiring clear visual indication and robust performance.
NKK Switches LB16CKG01F Illuminated Pushbutton Switch Specifications:
- Housing Material: Polycarbonate, black
- Mounting: Snap-in
- Illumination: Bright LED available in various colors
- Electrical Capacity: 3A @ 125V AC and 250V AC
- Power Consumption: Maximum 0.4VA @ 28V AC/DC
- Switch Type: Momentary and maintained circuits
- Contacts: Silver contacts, resistance max 50 milliohms
- Insulation Resistance: Minimum 200 megaohms at 500V DC
- Dielectric Strength: 1,000V AC between contacts for 1 minute
- Mechanical Life: 1,000,000 operations minimum
- Travel: Pretravel 0.059” (1.5mm), Overtravel 0.059” (1.5mm), Total travel 0.118” (3.0mm)
- Environmental: Operating temperature -25°C to +50°C, humidity 95% for 96 hours @ 40°C
- Panel Sealed: Meets IP65 (IEC 60529)
- Terminals: Solder lugs and quick connect options, epoxy sealed
- Certifications: UL, cUL, CSA recognition when ordered with markings
Buy the NKK Series LB Illuminated Pushbuttons: LB16CKG01F
Buy your NKK Series LB16CKG01F illuminated pushbutton switch online now to benefit from reliable snap-in mounting, bright LED indicators, and IP65 weatherproof sealing. This versatile switch supports both momentary and maintained circuits, rated 3A at 125/250V AC, with durable silver contacts ensuring longevity. Its easy installation, various LED color options, and robust construction make it ideal for industrial, control panel, and automation projects. Order today and give your systems professional-grade performance with quick online delivery!
Order your NKK Series LB16CKG01F switch today and enhance your control panels with dependable, LED-illuminated operation!
Frequently Asked Questions
Where can I buy NKK Switches LB16CKG01F?
You can click on the BUY or RFQ button to purchase LB16CKG01F from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part LB16CKG01F?
You can download the LB16CKG01F datasheet or visit the NKK Switches website for support.
Who is the manufacturer of LB16CKG01F?
NKK Switches
