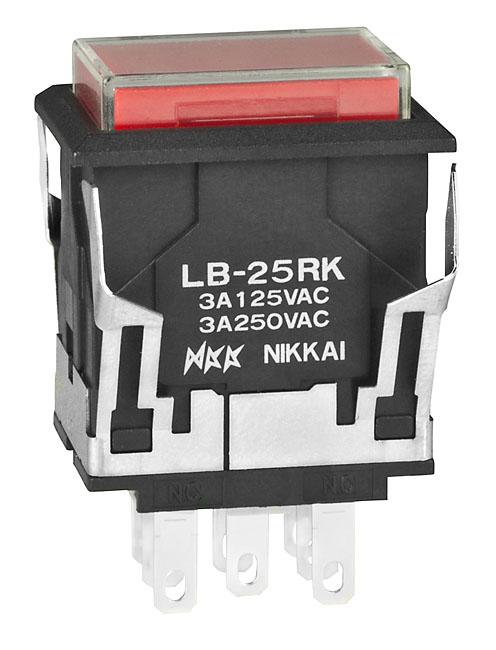

NKK Switches LB25RKW015C12JC Illuminated Pushbutton Switch
The LB25RKW015C12JC is a standard size illuminated pushbutton switch featuring snap-in mounting, suitable for various control panels and industrial environments. It provides bright, full-surface illumination with front panel relamping and options for single and bi-color LEDs in red, green, and blue. The switch's tactile feedback, long electrical life, and snap-action mechanism ensure reliable operation. Its panel sealed construction meets IP65 standards, reducing ingress of dust and moisture, making it ideal for demanding control and automation applications, with selectable LED types and color options for versatile use.
NKK Switches LB25RKW015C12JC Illuminated Pushbutton Switch Specifications:
- Housing Material: Polycarbonate (UL94V-0)
- Switch Type: Snap-in pushbutton
- Illumination: Bright LED and bi-color LED options
- LED Colors: Red, Green, Blue, Amber, White
- Voltage Rating: 3A at 125/250V AC, 0.4VA at 28V AC/DC
- Travel: Pretravel 0.059 inches (1.5mm); Overtravel 0.059 inches (1.5mm); Total travel 0.118 inches (3.0mm)
- Mechanical Life: 1,000,000 operations (momentary circuit), 200,000 operations (maintained circuit)
- Electrical Resistance: Contact resistance max 50 milliohms (silver), 100 milliohms (gold)
- Insulation Resistance: Minimum 200 megohms at 500V DC
- Dielectric Strength: 1,000V AC contact-to-contact, 1,500V AC contact-to-case (1 minute)
- Operating Temperature Range: -25°C to +50°C (-13°F to +122°F)
- Ingress Protection: IP65 (panel sealed)
- Materials & Finishes: Housing polycarbonate, contact materials silver alloy or copper, silicone rubber gasket
- Mounting: Snap-in with stainless steel clips, compatible with panel thickness 0.039” to 0.157” (1.0 to 4.0mm)
Buy the Buy NKK Illuminated Pushbutton Switch Part Number LB25RKW015C12JC Online
Order the NKK LB25RKW015C12JC illuminated pushbutton switch online now. Designed for industrial control panels, it offers snap-in mounting, IP65 sealed protection, and bright LED indicators in red, green, and blue. Its long electrical life and tactile feedback ensure dependable operation in demanding environments. Suitable for various automation and control systems, this switch provides versatility with multiple LED color options and robust construction. Purchase today for a durable, high-quality solution that enhances control panel functionality.
Get NKK LB25RKW015C12JC today—built for durability, bright illumination, and reliable switch operation in industrial control panels.
Frequently Asked Questions
Where can I buy NKK Switches LB25RKW015C12JC?
You can click on the BUY or RFQ button to purchase LB25RKW015C12JC from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part LB25RKW015C12JC?
You can download the LB25RKW015C12JC datasheet or visit the NKK Switches website for support.
Who is the manufacturer of LB25RKW015C12JC?
NKK Switches
