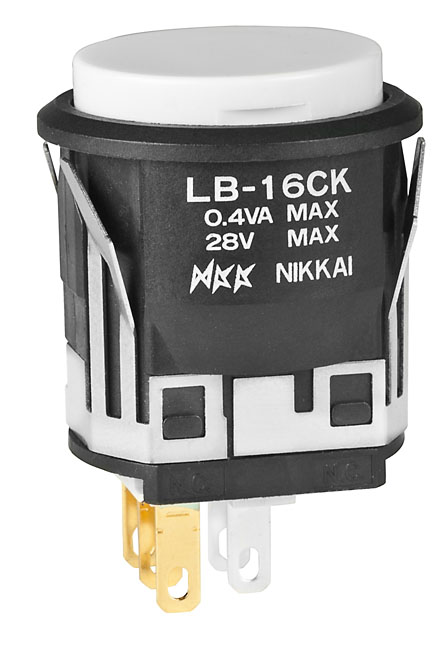

NKK Switches LB16CKW01BJ Illuminated Pushbutton Switch
The standard size illuminated pushbutton switch features snap-in installation, making panel mounting easy. Equipped with bright LEDs options, it offers reliable circuit indication with tactile feedback, long electrical life, and smooth operation. Its durable housing and sealed construction ensure IP65 protection, suitable for various industrial and control applications. Available with multiple LED and cap color options, it is an excellent choice for machinery, automation, and panel indicator systems, combining ease of installation with robust performance in demanding environments.
NKK Switches LB16CKW01BJ Illuminated Pushbutton Switch Specifications:
- Housing Material: Polycarbonate (UL94V-0)
- Operating Temperature Range: -25°C through +50°C for Illuminated, -25°C through +70°C for Nonilluminated
- Environmental Rating: IP65 (IEC60529), NEMA 4 & 13 equivalent
- Electrical Capacity: 3A @ 125/250V AC, 0.4VA max @ 28V AC/DC
- Mechanical Life: 1,000,000 operations minimum
- Electrical Life: 200,000 operations minimum
- Nominal Operating Force: 4.9N maximum
- Travel: Pretravel 1.5mm, Overtravel 1.5mm, Total 3.0mm
- Contact Resistance: 50 milliohms max for silver, 100 milliohms max for gold
- Insulation Resistance: 200 megaohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC between contacts and case for 1 minute
Buy the NKK Series LB Illuminated Pushbuttons: LB16CKW01BJ
Discover the durability and reliability of the NKK Series LB illuminated pushbutton switch. Designed for easy snap-in panel installation, it features bright LED options, long mechanical and electrical life, and IP65 rated protection suitable for industrial environments. Available with a variety of LED and cap color choices, this switch excels in automation, machinery, and control panels, providing intuitive operation and dependable circuit indication. Shop online now to upgrade your projects with quality, easy-to-install industrial switches.
Order your NKK Series LB LB16CKW01BJ illuminated pushbutton today and enhance your control panels with reliable LED indicators and robust sealing.
Frequently Asked Questions
Where can I buy NKK Switches LB16CKW01BJ?
You can click on the BUY or RFQ button to purchase LB16CKW01BJ from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part LB16CKW01BJ?
You can download the LB16CKW01BJ datasheet or visit the NKK Switches website for support.
Who is the manufacturer of LB16CKW01BJ?
NKK Switches
