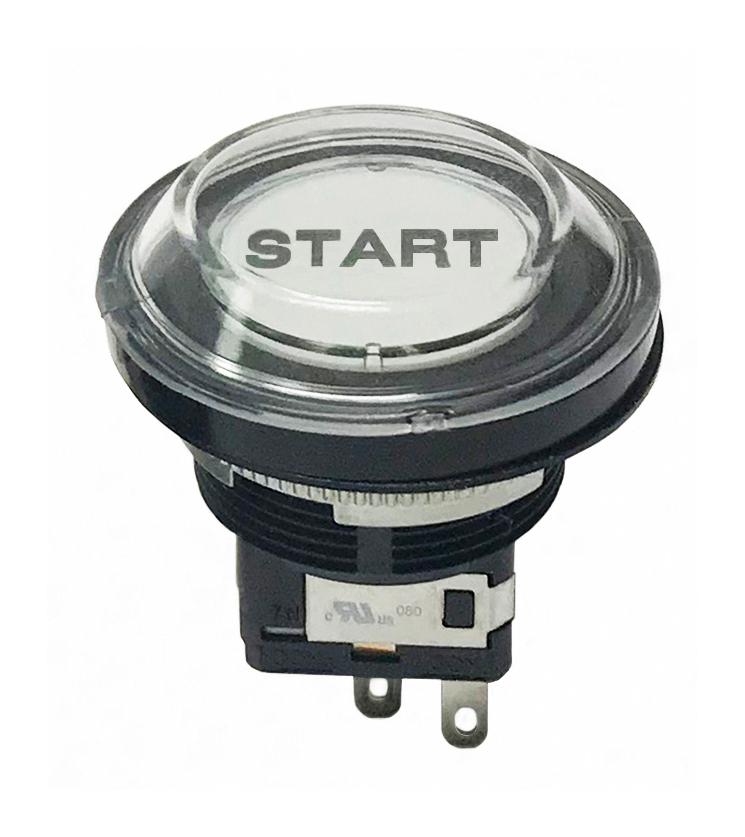

NKK Switches LB15VA002 Sealed Pushbutton
The IP65 Panel Seal Pushbutton with Legend & Splash Cover from Series LB offers reliable operation in industrial environments. It features a durable polyamide housing with IP65 sealing, a clear legend window with laser etching, and a splash cover for additional protection. The switch supports resistive loads up to 3A at 125V AC or 250V AC, with a mechanical life of 1,000,000 operations. Designed for panel mounting with bushing and solder lug or quick connect options, it withstands environmental challenges including humidity, vibration, and shock, ensuring long-term performance in demanding applications.
NKK Switches LB15VA002 Sealed Pushbutton Specifications:
- Housing Material: Glass fiber reinforced polyamide (UL94V-0)
- Sealing: IP65 (IEC 60529), similar to NEMA 4 & 13
- Operating Temperature Range: 25°C to +50°C (O°C with splash cover)
- Humidity: 90-95% for 98 hours @ 40°C
- Vibration: 10-55Hz, peak-to-peak amplitude 1.5mm
- Shock: 50G in 6 directions
- Mounting Torque: 1.96Nm (17.35 lbs-in)
- Electrical Capacity: 3A at 125V AC or 250V AC, 3A at 30V DC
- Contact Resistance: Max 50 milliohms
- Insulation Resistance: Min 200 megohms @ 500V DC
- Dielectric Strength: 1000V AC between contacts, 1500V AC between contacts and case
- Mechanical Life: 1,000,000 operations
- Environmental Resistance: Vibration, shock, humidity, sealing
Buy the NKK Switches LB15VA002 – Reliable Pushbutton for Industrial Applications
Enhance your control panel with the IP65 Sealed Pushbutton featuring a clear legend and splash cover. Designed for demanding industrial environments, it offers IP65 sealing, high durability, and long mechanical life. Compatible with resistive loads up to 3A at standard voltages, it withstands vibration, shock, humidity, and extreme temperatures. Easy to install with bushing mounting and solder lug or quick connect options. Ideal for automation, machinery, and control systems needing reliable, sealed switching solutions.
Buy NKK Switches LB15VA002 now and experience unmatched reliability and performance in industrial control panels.
Frequently Asked Questions
Where can I buy NKK Switches LB15VA002?
You can click on the BUY or RFQ button to purchase LB15VA002 from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part LB15VA002?
You can download the LB15VA002 datasheet or visit the NKK Switches website for support.
Who is the manufacturer of LB15VA002?
NKK Switches
