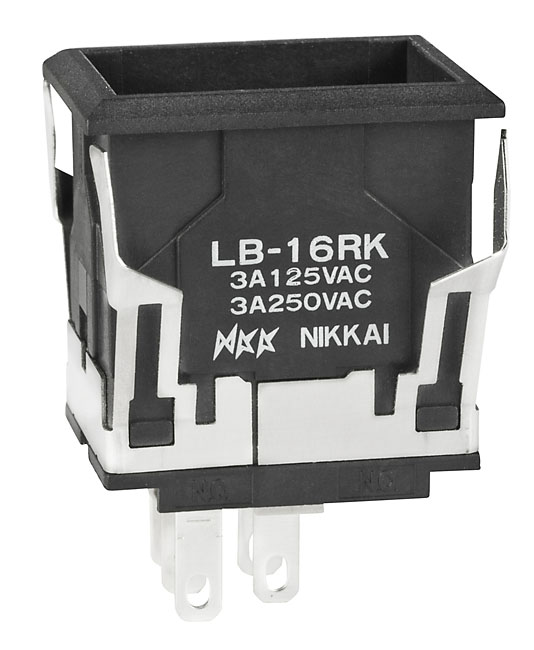

NKK Switches LB16RKW01 Illuminated Pushbutton Switch
This standard size illuminated pushbutton switch features snap-in mounting that ensures reliable operation and easy installation. It incorporates bright LEDs with full surface illumination, suitable for panel mounting in various electronic and industrial applications. The switch provides tactile feedback, long electrical life, and optional illumination colors including red, amber, green, and blue. Designed for durability, it meets IP65 standards when panel sealed, with robust materials like polyamide housing, and is available with different lens and cap options for customization. Ideal for control panels requiring visibility and durability.
NKK Switches LB16RKW01 Illuminated Pushbutton Switch Specifications:
- Housing Material: Polyamide (UL94V-0)
- Contact Resistance: 50 milliohms maximum for silver, 100 milliohms maximum for gold
- Insulation Resistance: 200 megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC minimum between contacts, 1,500V AC between contacts and case
- Mechanical Life: 1,000,000 operations minimum for momentary circuit
- Electrical Life: 200,000 operations minimum for maintained circuit
- Nominal Operating Force: Not specified
- Contact Timing: Not specified
- Travel: Pretravel 0.059” (1.5mm); Overtravel 0.059” (1.5mm); Total Travel 0.118” (3.0mm)
- Environmental Operating Temperature Range: -25°C to +50°C (illuminated), -25°C to +70°C (non-illuminated)
- Panel Seal: Meets IP65 (IEC60529)
Buy the NKK Series LB Illuminated Pushbutton: LB16RKW01
Order the NKK LB16RKW01 illuminated pushbutton switch online today and enjoy easy installation, bright surface illumination, and durable performance. This reliable switch features snap-in mounting for quick setup in control panels, with multiple LED color options such as red, amber, green, and blue for enhanced visibility. It offers long electrical and mechanical life, IP65 sealing for protection against dust and water ingress, and robust polyamide housing ensuring durability in industrial environments. Perfect for various automation and control solutions requiring visibility, durability, and ease of use.
Buy NKK LB16RKW01 illuminated pushbutton switch now and experience unmatched reliability and performance in control panel applications.
Frequently Asked Questions
Where can I buy NKK Switches LB16RKW01?
You can click on the BUY or RFQ button to purchase LB16RKW01 from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part LB16RKW01?
You can download the LB16RKW01 datasheet or visit the NKK Switches website for support.
Who is the manufacturer of LB16RKW01?
NKK Switches
