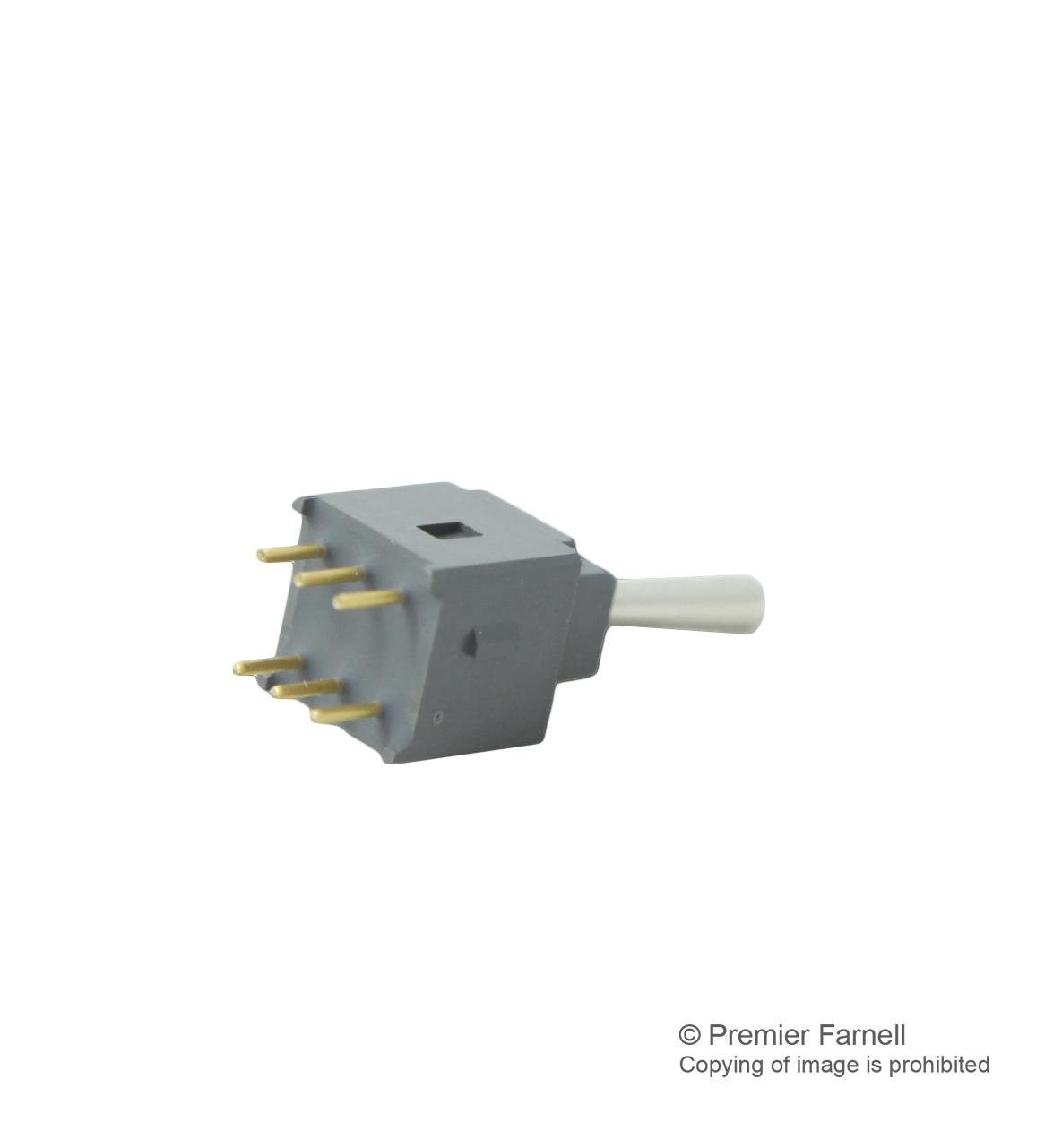

NKK Switches A22AP Toggle Switch
The Series A Process Sealed Subminiature Toggles are space-saving, sealed switches suitable for logic-level circuits. They feature a body construction that prevents contact contamination and supports automated soldering and cleaning. These toggles incorporate award-winning STC contact mechanisms for reliable operation and longer life, with options including various switch positions, colors, and terminal configurations. Ideal for low-voltage, low-current applications, they meet environmental standards and are designed for durability in PCB assemblies, providing excellent electrical performance and environmental resistance.
NKK Switches A22AP Toggle Switch Specifications:
- Electrical Capacity: 0.4VA max at 28V AC/DC, 0.1mA to 0.1A
- Contact Resistance: Max 50 milliohms
- Insulation Resistance: Min 500 megohms @ 500V DC
- Dielectric Strength: 500V AC for 1 minute
- Mechanical Life: 100,000 operations typical, 50,000 operations for other circuits
- Electrical Life: 50,000 operations min
- Operating Force: 1.47N (momentary), 1.18N (maintained) for .394" toggles; 2.73N and 1.84N for other toggles
- Temperature Range: -30°C to +85°C
- Humidity Resistance: 95% RH for 240 hours at 40°C
- Vibration Resistance: 10-55Hz, 1.5mm amplitude, 1 minute cycles
- Shock Resistance: 50G acceleration
- Soldering: Wave soldering 5 sec max @ 270°C, manual 3 sec @ 350°C
- Certifications: Not UL or CSA recognized, designed for low-voltage logic circuits
- Material & Finish: Brass with nickel plating, polyamide with antistatic options
