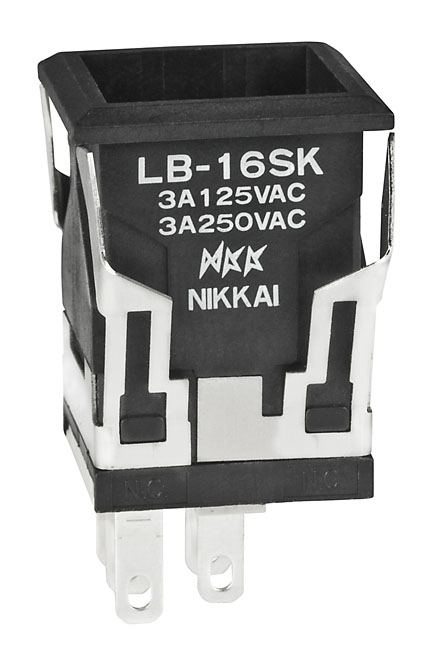

NKK Switches LB16SKW01 Illuminated Pushbutton Switch
This standard size illuminated pushbutton switch features a snap-in mounting mechanism for easy panel installation. It offers bright surface illumination with options for single and bicolor LEDs, ensuring high visibility in industrial applications. The switch includes a durability of at least 1,000,000 operations for momentary circuits, makes use of high-quality materials like polycarbonate and stainless steel, and complies with IP65 standards for panel sealing. Designed for reliable performance, it is suitable for control panels requiring clear, bright indication and long life.
NKK Switches LB16SKW01 Illuminated Pushbutton Switch Specifications:
- Housing: Polycarbonate with IP65 sealing
- Material: Polycarbonate, stainless steel
- Operating Temperature Range: -25°C to +50°C for illuminated models, -25°C to +70°C for non-illuminated
- Electrical Capacity: 3A @ 125V/250V AC, 0.4VA @ 28V AC/DC
- Electrical Life: 1,000,000 operations minimum for momentary circuit
- Mechanical Life: 1,000,000 operations minimum
- Contact Resistance: 50 milliohms maximum for silver contacts
- Insulation Resistance: 200 megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC between contacts for 1 minute, 1,500V AC between contacts & case for 1 minute
- Travel: Pretravel 0.059”, overtravel 0.059”, total travel 0.118”
- Pushbutton Cap: Various colors; including clear, red, amber, green, blue with diffusers available
- Mounting: Snap-in with stainless steel clips for secure fitting on panels
- Environmental: Humidity 90-95% for 96 hours at 40°C, vibration 1.5mm at 1-55Hz, Shock 50G
Buy the NKK LB16SKW01 – Reliable Industrial Pushbutton Switch for Control Panels
Purchase your NKK LB16SKW01 illuminated pushbutton switch online today to equip your control panels with bright, reliable indication. Designed for easy snap-in installation, it offers long-lasting durability with a mechanical life exceeding 1 million operations and electrical capacity of 3A at 125/250V AC. The switch’s high IP65 sealing ensures protection against dust and water, making it perfect for industrial environments. Compact, robust, and available with various LED colors, it is the ideal choice for engineers and project managers seeking dependable control components.
Order your NKK Series LB16SKW01 illuminated pushbutton switch today and enhance your control panel reliability with high-quality, durable operation.
Frequently Asked Questions
Where can I buy NKK Switches LB16SKW01?
You can click on the BUY or RFQ button to purchase LB16SKW01 from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part LB16SKW01?
You can download the LB16SKW01 datasheet or visit the NKK Switches website for support.
Who is the manufacturer of LB16SKW01?
NKK Switches
