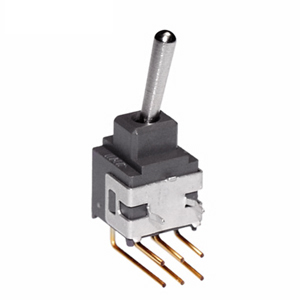

NKK Switches A28AH Subminiature Toggle Switch
A subminiature toggle switch suitable for various electronic and control applications, offering reliable operation in a compact form factor.
NKK Switches A28AH Subminiature Toggle Switch Specifications:
- Electrical Capacity: 0.4VA max @ 28V AC/DC
- Contact Resistance: 50 milliohms max
- Insulation Resistance: 500 megohms min @ 500V DC
- Dielectric Strength: 500V AC for 1 minute
- Mechanical Life: 100,000 cycles
- Electrical Life: 50,000 cycles
- Nominal Operating Force: 1.47N (momentary), 1.18N (maintained)
- Contact Timing: Nonshorting (break-before-make)
- Angle of Throw: 26°
- Material: Glass fiber reinforced polyamide, nickel plated brass
- Environmental Temp Range: -30°C to +85°C
- Humidity: 90-95% RH for 240 hours @ 40°C
- Vibration: 10-55Hz with 1.5mm amplitude
- Shock: 50G acceleration
- Soldering: Wave soldering recommended, profile A
- Cleaning: Automated cleaning, specifications per manufacturer
Buy the Buy NKK Process Sealed Subminiature Toggle Switch A28AH Online
Purchase the NKK A28AH subminiature toggle switch online today for reliable performance in compact spaces. Designed for low-current, logic-level circuits, it features sealed construction for contamination resistance, high durability, and simplified assembly. Perfect for electronic control panels, instrumentation, and automation systems, this switch offers long operational life and consistent switching reliability. Order now to enjoy fast shipping and ensure your project benefits from this space-efficient, high-quality toggle switch tailored for demanding control environments.
Get NKK A28AH today—built for precision, space-saving design, and long-lasting durability in control and electronic switching applications.
Frequently Asked Questions
Where can I buy NKK Switches A28AH?
You can click on the BUY or RFQ button to purchase A28AH from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part A28AH?
You can download the A28AH datasheet or visit the NKK Switches website for support.
Who is the manufacturer of A28AH?
NKK Switches
