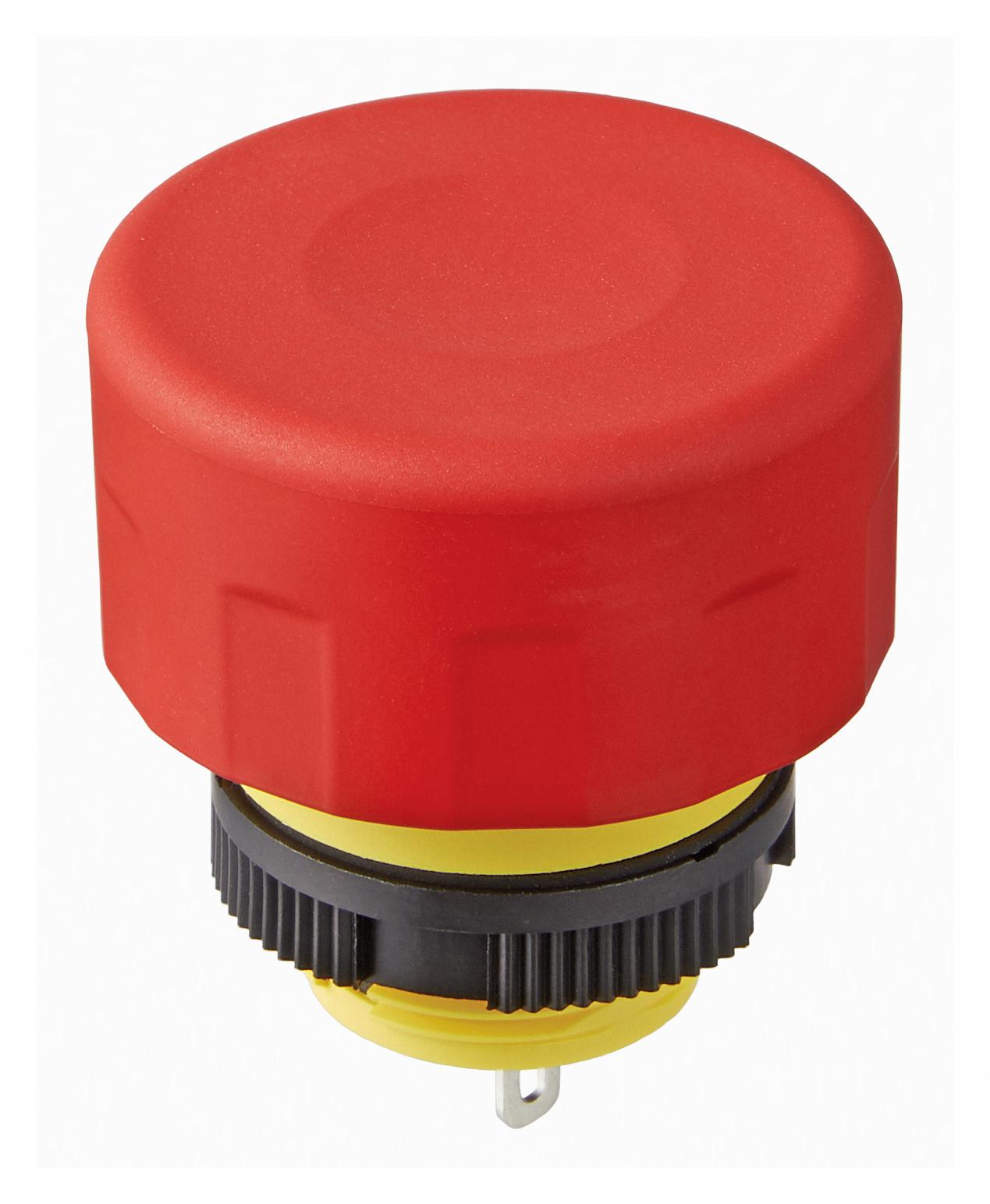

NKK Switches FF0116BBCEEA01 Emergency Stop Switch
The FFO1 Series Low Profile Emergency Stop Switches are designed for high-density panel layouts, featuring the shortest behind-panel depth of 13.6mm. They are IP65 rated, providing dust-tight and water jet protection at the front panel. These switches offer reliable safety locking mechanisms with pull and twist reset options, making them ideal for factory automation, machinery, and industrial control systems. Constructed with durable materials, they support a range of voltages and currents, withstand vibrations, shocks, and harsh environments, ensuring safety and long-term operational stability.
NKK Switches FF0116BBCEEA01 Emergency Stop Switch Specifications:
- Electrical Capacity: 0.5A @ 24V DC, 36V DC
- Rated Insulation Voltage: 2.5kV
- Contact Resistance: 50 milliohms maximum
- Insulation Resistance: 100 megohms minimum @ 500V DC
- Mechanical Life: 100,000 operations minimum
- Operating Force: Push to lock 10.8N; Pull to reset 8.5N; Turn to reset 0.13N·m
- Materials: Actuator of glass fiber reinforced PBT, housing of glass fiber reinforced polyamide
- Environmental Temperature Range: -45°C to +80°C
- Vibration: 10-500Hz, amplitude 0.35mm, acceleration 50m/s²
- Sealing: Meets IP65 standards at front panel
- Panel Thickness: 0.16
Buy the Buy NKK Switches Emergency Stop Switch Part Number FF0116BBCEEA01 Online
Order the NKK Switches FF0116BBCEEA01 emergency stop switch online for reliable safety and quick installation. Designed with IP65 sealing, it ensures durability against dust and water jets. Ideal for high-density panels with its compact profile of just 13.6mm depth. Suitable for factory automation, industrial machinery, and safety control systems. Easy to install with solder lug terminals, these robust switches withstand vibration and shock, providing long-term operational stability. Purchase now to enhance your equipment’s safety and compliance efficiently.
Get NKK Switches FF0116BBCEEA01 today—built for safety, durability, and easy panel integration in industrial environments.
Frequently Asked Questions
Where can I buy NKK Switches FF0116BBCEEA01?
You can click on the BUY or RFQ button to purchase FF0116BBCEEA01 from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part FF0116BBCEEA01?
You can download the FF0116BBCEEA01 datasheet or visit the NKK Switches website for support.
Who is the manufacturer of FF0116BBCEEA01?
NKK Switches
