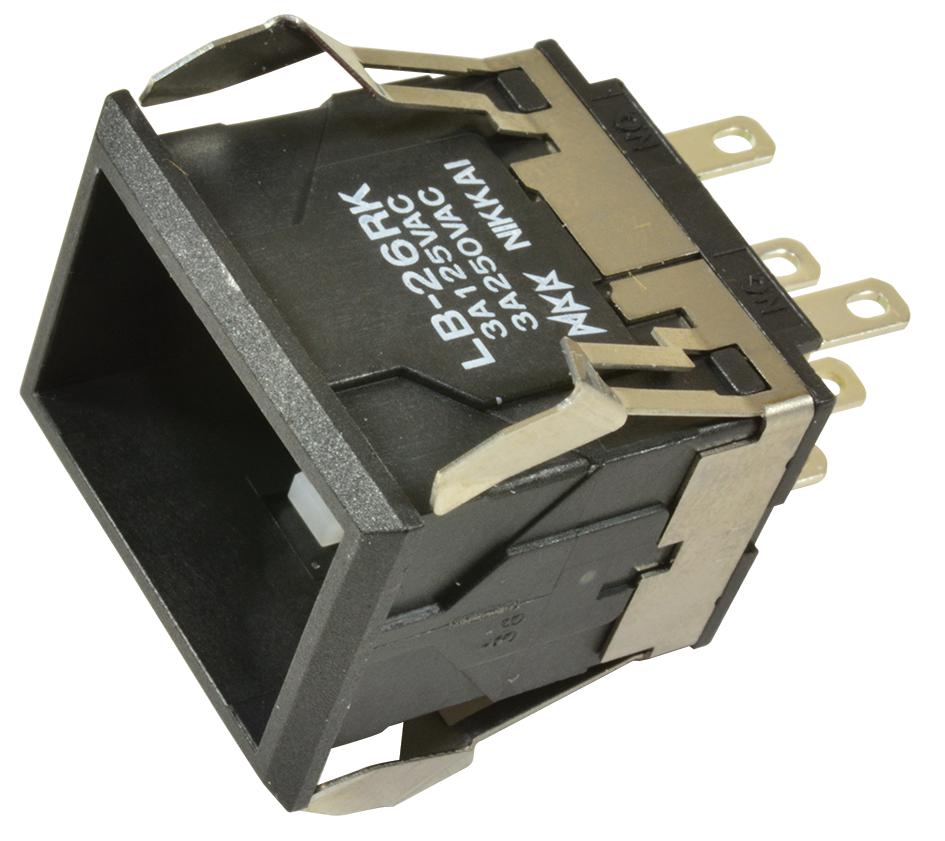

NKK Switches LB26RKW01 Pushbutton Switch
The LB26RKW01 is a standard size snap-in pushbutton switch designed for industrial applications, featuring a rectangular housing with a black GFR polyamide base, clear polycarbonate cover, and stainless steel spring. It is equipped with a LED indicator, optional resistors, and various cap and color options, meeting IP65 panel seal specifications. The switch supports snap-action contact mechanism, long electrical life, and is suitable for control panels, automation systems, and machinery with rated 3A at 125/250V AC. It is compliant with UL, cUL, and CSA standards when ordered with markings.
NKK Switches LB26RKW01 Pushbutton Switch Specifications:
- Housing: Black GFR Polyamide
- Cover: Clear Polycarbonate
- Spring Material: Stainless Steel
- Contact Material: Silver alloy with gold plating
- Electrical Capacity: 3A @ 125V or 250V AC, 0.4VA @ 28V AC/DC
- Operating Temperature Range: -25°C to +50°C for illuminated, -25°C to +70°C for non-illuminated
- Ingress Protection: IP65 (panel seal model)
- Total Travel: 0.118" (3.0mm)
- Pretravel: 0.059" (1.5mm)
- Overtravel: 0.059" (1.5mm)
- Mounting: Snap-in panel with mounting clips
- Standards & Certifications: UL, cUL, CSA recognized when ordered with markings
- Panel Cutout: 0.638" x 0.638" (16.2mm x 16.2mm)
- Dimensions: Corresponds to standard size pushbutton, depth minimized for panel space efficiency
- Terminals: Solder lug and quick connect options, epoxy sealed
Buy the NKK LB26RKW01 – Reliable Pushbutton for Industrial Applications
Purchase the NKK LB26RKW01 pushbutton switch online now and enhance your automation and control systems with this reliable, IP65-sealed switch. Featuring long electrical life, optional LED indicators, and multiple color and cap options, this switch is ideal for industrial and machinery control panels. Its snap-in installation and certification support ensure quick setup and compliance with safety standards. Upgrade your project today for safe, durable, and professional-grade control solutions.
Order your NKK Series LB26RKW01 snap-in pushbutton today and give your control panels the dependable quality they deserve with advanced LED options.
Frequently Asked Questions
Where can I buy NKK Switches LB26RKW01?
You can click on the BUY or RFQ button to purchase LB26RKW01 from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part LB26RKW01?
You can download the LB26RKW01 datasheet or visit the NKK Switches website for support.
Who is the manufacturer of LB26RKW01?
NKK Switches
