NKK Switches KP0215ANBKG036E3SJB Illuminated Pushbutton Switch
The KP Series Single Color Illuminated Pushbutton combines a sleek, compact design with super bright white, yellow, or blue LEDs integrated into the switch. Designed for control panels, it features a 3.5mm stroke, smooth tactile feel, and a height of 23mm from PCB to top of cap. The pushbutton includes gold-plated contact terminals rated for 100mA at 12V DC, ensuring high reliability with a minimum of 5 million operations. Choose from flat or sculptured caps, with optional legends, making it ideal for versatile industrial, automation, and control applications.
NKK Switches KP0215ANBKG036E3SJB Illuminated Pushbutton Switch Specifications:
- Electrical Capacity: 100mA @ 12V DC
- Contact Resistance: 200 milliohms maximum
- Insulation Resistance: 100 megohms minimum @ 250V DC
- Dielectric Strength: 1,000V AC for 1 minute between contacts, 1,500V AC for 1 minute between contacts and case
- Mechanical Life: 5,000,000 operations minimum
- Electrical Life: 5,000,000 operations minimum
- Travel: Total travel 0.138 inches (3.5mm), pretravel 0.091 inches (2.3mm), overtravel 0.047 inches (1.2mm)
- Materials & Finishes: Plunger/Upper Housing - glass fiber-reinforced PBT UL94V-0; Movable Contact - gold over copper alloy; Switch Terminals - brass with fin plating; Housing - polyacetal
- Operating Temperature Range: -25°C to +50°C
- Humidity: 90-95% for 240 hours at 40°C
- Vibration: 10-55Hz with peak-to-peak amplitude of 1.5mm in 1 minute, 3 directions for 2 hours
- Shock: 51G acceleration in 6 directions
- Installation: Cap installation force 1.6N, wave and manual soldering as specified, not process sealed
- Standards & Certifications: UL94V-0 flammability rating; not tested for UL or CSA certification
- LED Specs: Bright white, yellow, blue LEDs, forward current 20mA, forward voltage 3.2V, reverse voltage 5V, ambient temperature -25°C to +50°C
- Cap & Lens: Flat or sculptured caps, check details for sizes 15.0mm and 17.4mm, optional protective guard available
- Dimensions: Height from PCB to top of cap approximately 23.0mm, plunger diameter 11.6mm or 17.4mm, cap sizes 15.0mm or 17.4mm

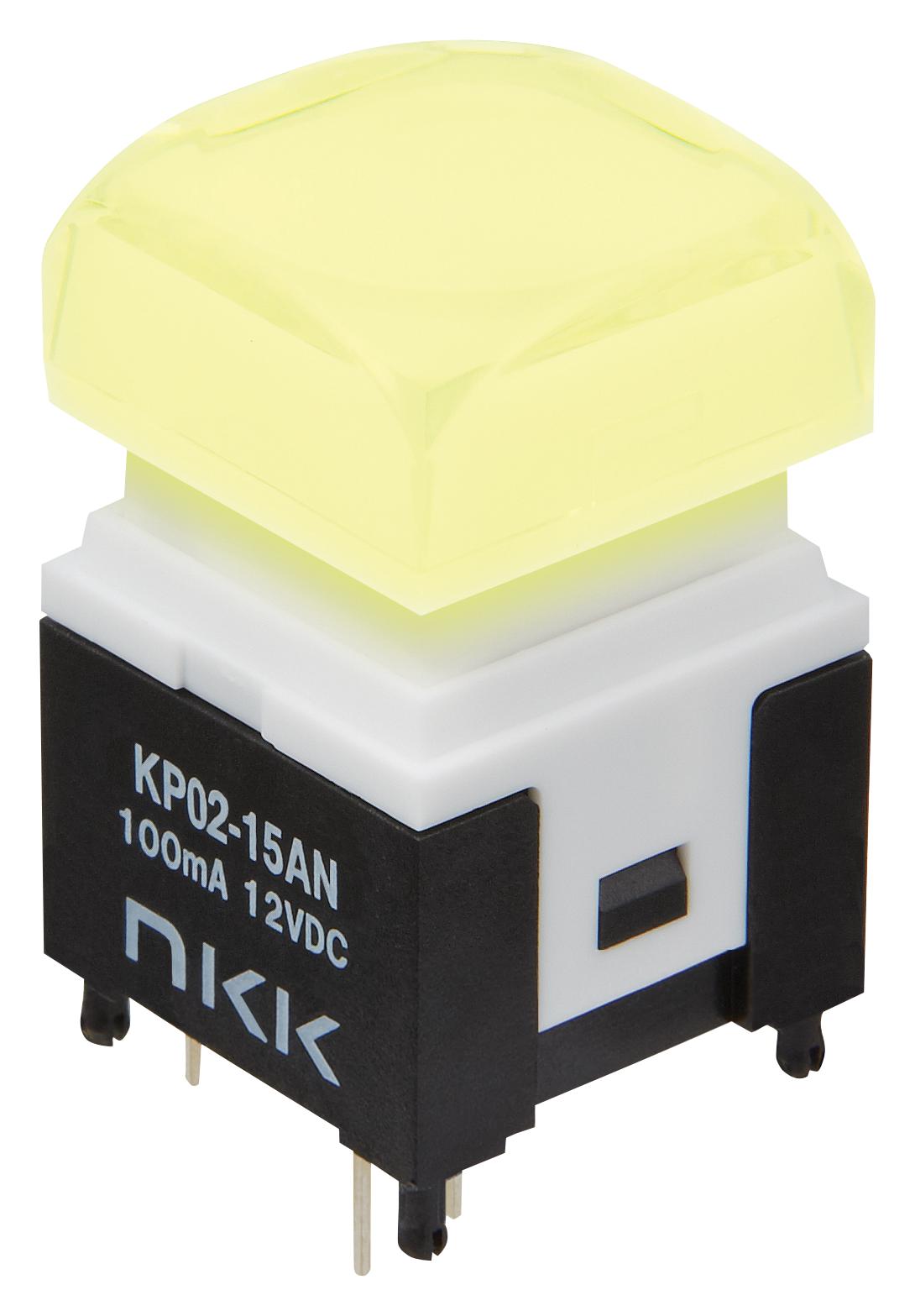

Buy the Buy NKKS W Series Illumination Pushbutton Part Number KP0215ANBKG036E3SJB Online
