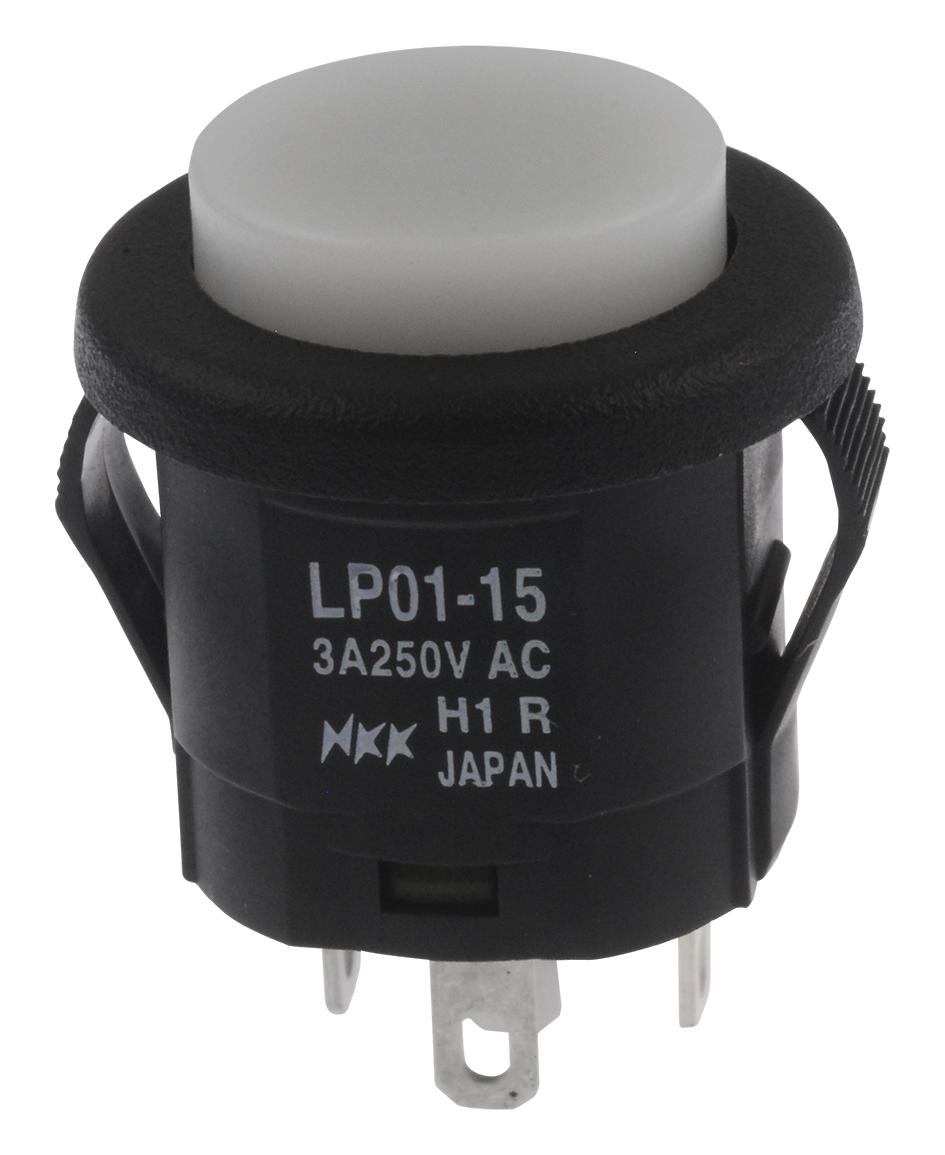

NKK Switches LP0115CMKW015CB Short Body Pushbutton
The Series LPO1 Short Body Pushbuttons are compact, environmentally friendly switches designed for panel mounting with bushing or snap-in options. They feature LED illumination options in red, green, or amber, and a crisp snap-action contact mechanism ensuring clear circuit status. Made with durable materials like polycarbonate and phosphor bronze with silver plating, these switches provide high electrical capacity rated at 3A at 125V AC or 250V AC, suitable for various industrial applications. The switches are RoHS compliant, with a height of 0.551 inches, and include features like tamper-resistant caps and versatile mounting options for reliable performance.
NKK Switches LP0115CMKW015CB Short Body Pushbutton Specifications:
- Electrical Capacity: 3A @ 125V AC/250V AC or 30V DC
- Contact Resistance: 50 milliohms maximum
- Insulation Resistance: 200 megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC minimum between contacts, 1,500V AC minimum between contacts and case
- Mechanical Life: 500,000 operations minimum
- Electrical Life: 100,000 operations minimum at rated current
- Operating Temperature: 10°C to +50°C for illuminated, -25°C to +70°C for non-illuminated
- Travel: Total travel of 0.118 inches (3.0mm)
- Housing Material: UL94V-0 polycarbonate
- Housing and Base: Glass fiber reinforced polyamide or polyphenylene ether
- Switch actuation: Snap-action contact mechanism
- Mounting Types: Bushing and snap-in options
- Cap Colors: White (illuminated), Black (non-illuminated)
- LED Colors: Red, Green, Amber
- LED Forward Voltage: 1.95V to 2.0V at 20mA
- Dimensions: Height 0.551 inches (14.0 mm), suitable for space-constrained applications
- Standards & Certifications: UL recognized, RoHS compliant
Buy the NKK Series LPO1 Pushbutton: LP0115CMKW015CB
Order the NKK Series LPO1 Short Body Pushbutton switch online today and ensure reliable operation with its durable construction, snap-action contacts, and integrated LED illumination. Perfect for space-constrained panels, these switches feature high electrical capacity, sealed housing options, and RoHS compliance, making them ideal for industrial control applications. Whether you need a bushing or snap-in mounting type, this switch offers crisp actuation with tamper-resistant caps and a total travel of 3.0mm. Purchase now for quick delivery and professional-grade performance.
Get NKK series LPO1 pushbutton switch today—built for reliability and long-lasting performance in industrial environments.
Frequently Asked Questions
Where can I buy NKK Switches LP0115CMKW015CB?
You can click on the BUY or RFQ button to purchase LP0115CMKW015CB from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part LP0115CMKW015CB?
You can download the LP0115CMKW015CB datasheet or visit the NKK Switches website for support.
Who is the manufacturer of LP0115CMKW015CB?
NKK Switches
