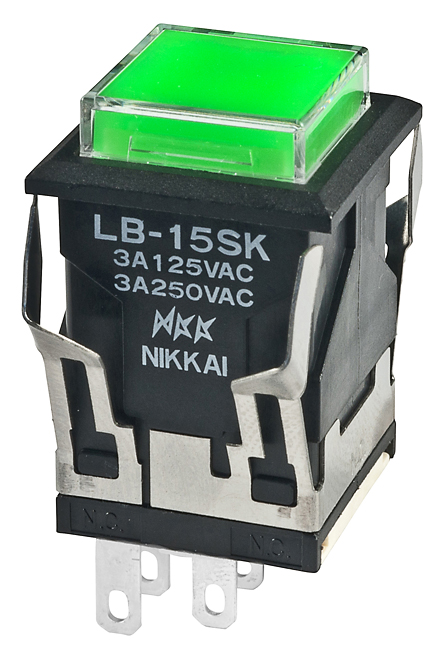

NKK Switches LB15SKW015F24JF Illuminated Pushbutton
The standard size illuminated pushbutton features a snap-in mounting for quick installation and reliable operation, ideal for control panels and industrial applications. It offers bright full surface illumination with options for single or bicolor LEDs, along with incandescent and neon lamps. Incorporating high durability materials such as polycarbonate and stainless steel, it withstands harsh environments with IP65 panel sealing. Various LED colors, lens/filter options, and mounting accessories are available, ensuring flexibility in customization. Suitable for automation, machinery, and control systems requiring clear indication and long operational life.
NKK Switches LB15SKW015F24JF Illuminated Pushbutton Specifications:
- Housing Material: Polycarbonate, IP65 sealed
- Mounting: Snap-in
- Illumination Options: Bright LEDs, Single/bi-color, Incandescent, Neon lamps
- LED Colors: Red, Green, Blue, Amber, White
- Lens/Filter Colors: Clear, Red, Amber, Green, Blue, White
- Contact Ratings: 3A @ 125/250V AC, 0.4VA @ 28V AC/DC
- Switch Terminals: Solder lug/quick connect, epoxy sealed
- Electrical Resistance: Contact resistance less than 50 milliohms; Insulation resistance minimum 200 megohms
- Operating Temperature: -25°C to +50°C for illuminated versions, -25°C to +70°C for non-illuminated
- Mechanical Life: 1,000,000 operations minimum
- Travel: Pretravel 0.059”, Overtravel 0.059”, Total travel 0.118”
- Panel Thickness: 0.039” ~ 0.157”
- Certifications: UL Recognized, CSA Certified, IEC IP65
Buy the NKK Series LB Illuminated Pushbutton: LB15SKW015F24JF
Order the NKK Series LB illuminated pushbutton online today to enhance your control panels with bright LED illumination, durable construction, and IP65 sealing. Crafted for industrial environments, this snap-in switch offers quick installation, long-lasting operation, and customizable options including LED colors, lens filters, and lamp types. Whether upgrading existing controls or designing new systems, this high-quality pushbutton ensures excellent visibility and reliable performance. Purchase now to benefit from fast delivery and technical support, securing an optimal solution for your automation and machinery needs.
Buy NKK Series LB15SKW015F24JF illuminated pushbutton now and experience unmatched durability, bright illumination, and reliable control performance.
Frequently Asked Questions
Where can I buy NKK Switches LB15SKW015F24JF?
You can click on the BUY or RFQ button to purchase LB15SKW015F24JF from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part LB15SKW015F24JF?
You can download the LB15SKW015F24JF datasheet or visit the NKK Switches website for support.
Who is the manufacturer of LB15SKW015F24JF?
NKK Switches
