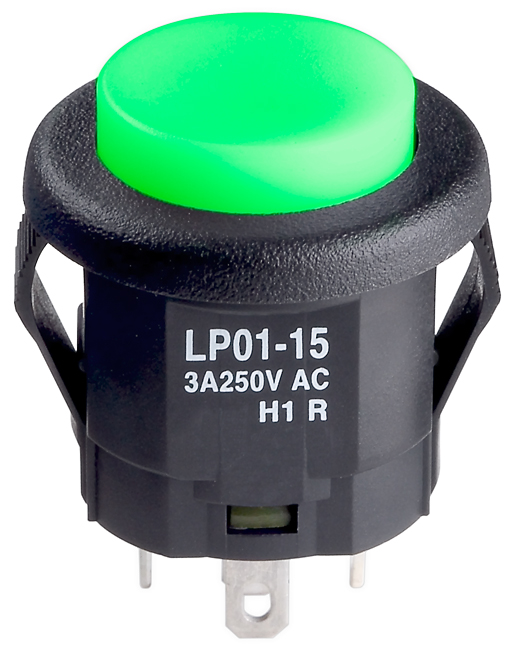

NKK Switches LP0115CMKW015FB Short Body Pushbutton Switch
The illuminated pushbutton switch is optimized for panel mounting in control panels and industrial equipment. Featuring a short body design of 0.551 inches (14.0mm), it conserves behind-panel space while providing bright LED illumination in red, green, or amber via translucent white caps. The switch incorporates a snap-action contact mechanism with crisp actuation and arc barriers for crossover protection. Constructed with durable materials including polycarbonate and phosphor bronze, it offers reliable electrical and mechanical performance with a rated 3A at 125V/250V AC and 30V DC, ensuring long service life for various industrial applications.
NKK Switches LP0115CMKW015FB Short Body Pushbutton Switch Specifications:
- Electrical Capacity: 3A @ 125V AC/250V AC or 3A @ 30V DC
- Contact Resistance: 50 milliohms maximum
- Insulation Resistance: 200 megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC between contacts, 1,500V AC between contacts and case
- Mechanical Life: 500,000 operations minimum
- Electrical Life: 50,000 operations minimum at rated load
- Nominal Operating Force: 1.5N (single pole), 3.0N (double pole)
- Travel: Total travel 0.118” (3.0mm)
- Materials: Actuator - Polycarbonate, Housing - Glass fiber reinforced polyamide (UL94V-0), Base - Polyphenylene ether (UL94V-0)
- Contact Materials: Phosphor bronze with silver plating, terminal contacts with tin & copper plating
- Lamp Terminals: Phosphor bronze with silver plating
- Operating Temperature Range: 10°C to +50°C with illumination, -25°C to +70°C without illumination
- Humidity: 90-95% for 240 hours at 40°C
- Vibration: 10-55Hz with peak-to-peak amplitude of 1.5mm, 2 hours per direction
- Shock: 50G acceleration in 6 directions
- Mounting Torque: 0.8Nm
- Soldering: Manual soldering, restricted profile for heat resistance
- Cleaning: Alcohol-based solution recommended
- Standards & Certifications: UL94V-0 housing and base, recognized by UL and cUL when ordered with marking, UL File No. E44145
Buy the NKK Short Body Pushbuttons – Reliable Control Switch for Industrial Applications
Purchase the NKK Series LPO1 short body pushbutton switch online today and equip your control systems with a space-efficient, durable, and reliable switch. Featuring bright LED options in red, green, or amber, it is designed for easy installation and long-lasting performance. Suitable for industrial environments, these switches provide crisp actuation, arc barriers for crossover protection, and meet stringent UL standards. Whether for control panels or machinery, order now to enhance your project with high-quality industrial switching components.
Order your NKK Series LPO1 short body pushbutton today and ensure reliable operation with space-saving design, robust construction, and LED illumination for industrial control panels.
Frequently Asked Questions
Where can I buy NKK Switches LP0115CMKW015FB?
You can click on the BUY or RFQ button to purchase LP0115CMKW015FB from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part LP0115CMKW015FB?
You can download the LP0115CMKW015FB datasheet or visit the NKK Switches website for support.
Who is the manufacturer of LP0115CMKW015FB?
NKK Switches
