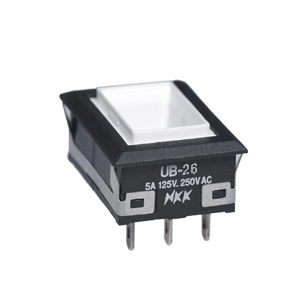

NKK Switches UB26NKW015F Low Profile Illuminated Pushbutton Switch
A low-profile, illuminated pushbutton switch designed for PCB mounting and soldering applications. It features a compact design suitable for space-constrained environments and provides visual indication when activated.
NKK Switches UB26NKW015F Low Profile Illuminated Pushbutton Switch Specifications:
- Poles & Circuits: Single & Double Pole
- Mounting Types: PCB Mounting, Snap-in Mounting
- Cap Types & Colors: Full Face Illuminated, Spot Illuminated, Black, White, Red, Amber, Green, Blue
- LED Colors & Specifications: Red, Amber, Green, White, Blue with forward voltage 1.85-3.2V, peak current 25-30mA
- Electrical Capacity: 5A @ 125/250V AC, 5A @ 30V DC
- Contact Resistance: 50 milliohms max for silver, 100 milliohms max for gold
- Insulation Resistance: 200 megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC between contacts for 1 min, 1,500V AC between contacts & case for 1 min
- Mechanical Life: 1,000,000 operations minimum
- Electrical Life: 200,000 operations minimum
- Nominal Operating Force: 1.9N for single & double pole square models
- Travel: Pretravel 0.067” (1.7mm); Overtravel 0.024” (0.6mm); Total Travel 0.091” (2.3mm)
- Materials: Housing/Bezel - UL94V-0 glass fiber reinforced polyamide; Contacts - Silver alloy with gold plating
- Temperature Range: -25°C to +50°C for illuminated, -20°C to +70°C for non-illuminated
- Certifications: UL recognised, CSA certified
- Soldering & Soldering Temp: Wave soldering profile A, Manual soldering profile A
- Environmental: Humidity 95% for 96 hours, Vibration 3 directions, Shock 50G
Buy the NKK Series UB Low Profile Illuminated Pushbutton Switch Part Number UB26NKW015F
Order the NKK Series UB low-profile illuminated pushbutton switch online today to enhance your control systems. Its space-saving design, exceptional electrical life, and UL/CSA certifications ensure top performance and safety in various industrial environments. With easy PCB mounting and multiple LED color options, this switch is perfect for space-constrained control panels. Improve your project’s reliability by purchasing this durable, high-quality switch through our secure online platform today. Quick delivery and excellent customer service included.
Buy NKK Series UB low-profile illuminated pushbutton switch now and experience unmatched reliability and performance in control panels.
Frequently Asked Questions
Where can I buy NKK Switches UB26NKW015F?
You can click on the BUY or RFQ button to purchase UB26NKW015F from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part UB26NKW015F?
You can download the UB26NKW015F datasheet or visit the NKK Switches website for support.
Who is the manufacturer of UB26NKW015F?
NKK Switches
