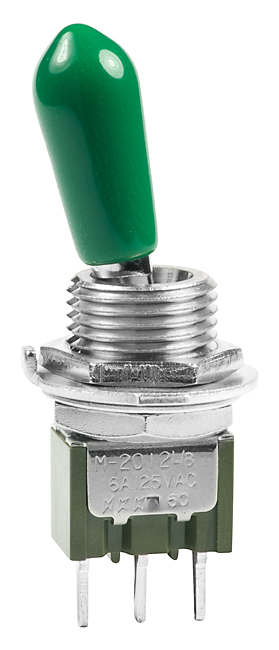

NKK Switches M2012B2B1W03VF Miniature Toggle Switch
This miniature toggle switch features multiple functions and provides reliable switching in a compact design, suitable for electronic applications requiring precise control, durability, and consistent operation. It combines high-quality materials with advanced contact ratings, ensuring long service life and efficient performance in various electrical circuits. The switch is engineered to meet industry standards for safety and functionality, making it ideal for panel Mount, automation, and control system integrations. Its rugged construction supports demanding environments and frequent actuation, ensuring dependable operation over time.
NKK Switches M2012B2B1W03VF Miniature Toggle Switch Specifications:
- Contact Material: Silver over Silver; Gold over Brass or Copper
- Power Level: 6A @ 125V AC & 3A @ 250V AC
- Logic Level: 6A @ 125V AC & 3A @ 250V AC
- Dielectric Strength: 1,000V AC for 1 minute
- Contact Resistance: 10 milliohms maximum for silver; 20 milliohms maximum for gold
- Insulation Resistance: 1,000 megohms minimum @ 500V DC
- Operating Temp Range: -30°C through +85°C
- Electrical Life: 50,000 to 100,000 operations depending on model
- Mechanical Life: 100,000 operations minimum
- Angle of Throw: 25°, 45°, or as specified
- Case Material: UL94V-0 rated polycarbonate
- Terminal Types: Solder Lug, Quick Connect
- Mounting: Panel Thickness maximum 0.102” (2.6mm)
- Bushing Material: Brass with Chrome or Nickel Plating
- Certification: UL Recognized, CSA Certified
Buy the Buy NKK Switches Miniature Toggle Part Number M2012B2B1W03VF Online
Purchase the NKK miniature toggle switch online today to ensure your electronic projects have dependable switching performance. This compact switch provides high contact ratings, durable construction, and industry-standard certifications, making it ideal for control panels, automation, and instrumentation. Its robust design supports high cycle life and reliable operation, helping you achieve precise control and safety compliance. Order now to enhance your electrical systems with a proven switching solution that guarantees performance and durability over prolonged use.
Buy NKK Switches M2012B2B1W03VF miniature toggle switch now and experience unmatched reliability and performance in your electrical control projects.
Frequently Asked Questions
Where can I buy NKK Switches M2012B2B1W03VF?
You can click on the BUY or RFQ button to purchase M2012B2B1W03VF from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part M2012B2B1W03VF?
You can download the M2012B2B1W03VF datasheet or visit the NKK Switches website for support.
Who is the manufacturer of M2012B2B1W03VF?
NKK Switches
