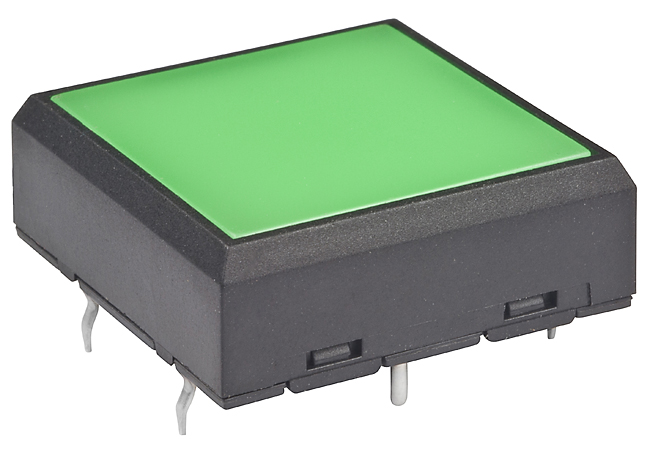

NKK Switches JL15SKSFFP2 Illuminated Tactile Switch
This illuminated ultra-thin tactile switch offers reliable tactile feedback with a crisp click and integrated bright LED illumination in red, green, or amber. It is designed for PC board applications, featuring a compact profile of just 0.31 inches from PCB to top. The switch includes a large 19mm square actuator, straight PC terminals, and crimped spring terminals for secure mounting. It supports up to 50mA at 24V DC, with a mechanical life of 1,000,000 cycles, ideal for low-voltage, low-current circuits requiring high reliability and visibility.
NKK Switches JL15SKSFFP2 Illuminated Tactile Switch Specifications:
- Electrical Capacity: 50mA @ 24V DC
- Contact Resistance: 50 milliohms maximum
- Insulation Resistance: 500 megohms minimum @ 250V DC
- Dielectric Strength: 250V AC for 1 minute
- Mechanical Life: 1,000,000 operations minimum
- Electrical Life: 1,000,000 operations minimum
- Nominal Operating Force: 3.0N
- Total Travel: 0.75mm (0.030 inch)
- Actuator: Square, 19mm face with full face illumination
- Housing: Black polycarbonate, compact profile 0.31 inches high
- Base: Glass fiber reinforced polyamide
- Contacts: Silver plated brass
- Terminals: Straight PC with crimped terminals
- LED Colors: Red, Green, Amber
- LED Forward Voltage: 4.0V to 4.2V
- LED Forward Peak Current: 75mA (Red), 80mA (Green & Amber)
- Operating Temperature Range: -25°C to +50°C
- Humidity: 90-95% for 240 hours at 40°C
- Vibration: 10-55Hz, peak-to-peak 1.5mm in all directions
- Shock: 50G in multiple directions with shocks
- Soldering: Wave and manual profiles, not process sealed
- Certifications: Not UL or CSA tested
Buy the NKK JL15SKSFFP2 – Reliable Illuminated Tactile Switch for Industrial Applications
Order the NKK JL15SKSFFP2 illuminated tactile switch today to enhance your electronic designs with bright, full-face LED illumination and durable tactile feedback. Its compact 0.31-inch profile fits seamlessly on PC boards, providing long-lasting reliability with one million cycles. Perfect for low-current, low-voltage applications requiring visible feedback, the switch’s high-quality construction features silver-plated contacts, secure crimped terminals, and multiple LED color options. Elevate your project with this advanced, reliable switch—buy online now for fast delivery and superior performance.
Buy NKK JL15SKSFFP2 now and experience unmatched reliability and performance in compact illuminated tactile switches.
