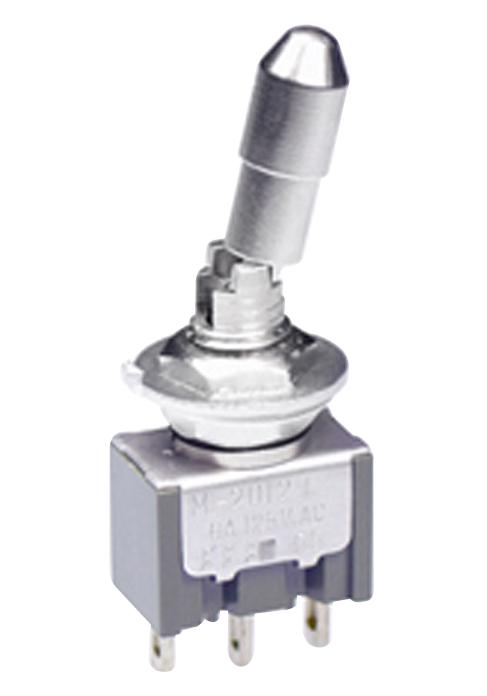

NKK Switches M2012LL4W01 Miniature Toggle Switch
Miniature toggle switch with silver contacts rated for 6A at 125V AC and 3A at 250V AC, featuring epoxy sealed terminals, high insulation barriers, and an antirotation design for reliable operation in control panels. Its compact size and durable materials make it ideal for industrial automation, instrumentation, and control systems where space-saving, high dielectric strength, and durability are critical. The switch includes a toggle assembly with a chrome-plated brass frame, ensuring excellent corrosion resistance, and is suitable for various mounting configurations with optional splashproof boots available.
NKK Switches M2012LL4W01 Miniature Toggle Switch Specifications:
- Poles & Circuits: SPST (Single Pole Single Throw)
- Contact Material: Silver over Silver
- Rated Power: 6A @ 125V AC & 3A @ 250V AC
- Electrical Life: 50,000 operations minimum for silver contacts
- Mechanical Life: 100,000 operations minimum
- Contact Resistance: 10 milliohms maximum for silver contacts
- Insulation Resistance: 1,000 megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC between contacts for 1 minute
- Operating Temperature: -30°C to +85°C
- Panel Thickness: Standard hardware supports up to 0.102” (2.6mm)
- Mounting Torque: 3.0 Nm (26.55 Ib-in)
- Environmental Ratings: Splashproof models available meeting IP67 standards
- Standards & Certifications: UL Recognized, CSA Certified
- Soldering & Cleaning: Wave soldering and manual soldering profiles provided
- Materials: Brass with chrome plating, polycarbonate or polyethylene caps, epoxy sealed terminals
Buy the NKK 2012LL4W01 – Reliable Toggle Switch for Industrial Applications
Purchase the NKK miniature toggle switch online today and ensure your control panels operate reliably with high-quality contacts, sealed terminals, and durable construction. This switch’s compact size, rated for demanding industrial environments, makes it perfect for automation systems, instrumentation, and control applications. Its epoxy sealed terminals prevent contamination, while the antirotation design ensures long-term operational integrity. Order now to benefit from fast shipping, trusted quality, and excellent performance for your industrial control needs.
Buy NKK 2012LL4W01 toggle switch now and experience unmatched reliability and performance in your control systems.
Frequently Asked Questions
Where can I buy NKK Switches M2012LL4W01?
You can click on the BUY or RFQ button to purchase M2012LL4W01 from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part M2012LL4W01?
You can download the M2012LL4W01 datasheet or visit the NKK Switches website for support.
Who is the manufacturer of M2012LL4W01?
NKK Switches
