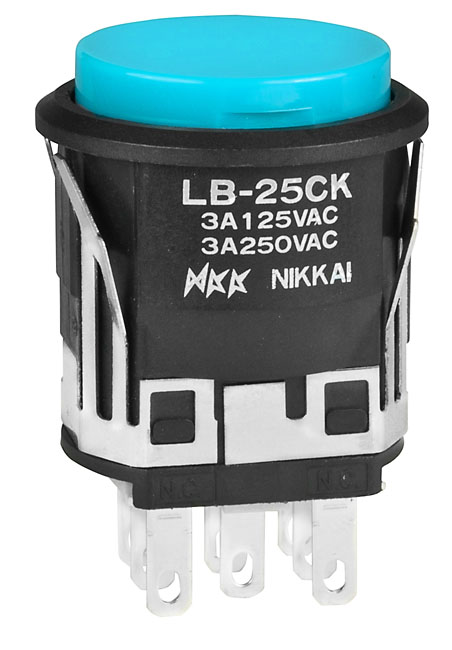

NKK Switches LB25CKW01G Illuminated Pushbutton
The standard size illuminated pushbutton switch offers reliable snap-in mounting, bright LED illumination options in multiple colors, and robust construction with includes snap-action contacts for long electrical life. Designed for easy installation and panel sealing up to IP65, this switch features various lens and cap options, including clear, colored, and illuminated with diffusers. Suitable for industrial, control panels, and automation applications, it provides stable electrical ratings of 3A at 125/250V AC and 0.4VA at 28V AC/DC, with tactile and audible feedback for enhanced operation.
NKK Switches LB25CKW01G Illuminated Pushbutton Specifications:
- Housing Material: Polycarbonate (UL94V-0)
- Contact Material: Silver alloy or copper with gold plating
- Electrical Capacity: 3A @ 125/250V AC; 0.4VA @ 28V AC/DC
- Contact Resistance: 50 milliohms maximum for silver, 100 milliohms maximum for gold
- Insulation Resistance: 200 megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC between contacts for 1 minute; 1,500V AC between contacts and case for 1 minute
- Mechanical Life: 1,000,000 operations minimum
- Electrical Life: 200,000 operations for maintained circuit, 100,000 for momentary circuit
- Operating Temperature Range: -25°C through +50°C (illuminated); -25°C through +70°C (non-illuminated)
- Pretravel: 0.059” (1.5mm); Overtravel: 0.059” (1.5mm); Total Travel: 0.118” (3.0mm)
- Mounting: Snap-in, with stainless steel clips for panel thickness up to 4.0mm
- Sealing: Panel sealed model meets IP65 (IEC 60529), similar to NEMA 4 & 13
- Cap & Lens Options: Clear, colored, LED diffuser, with snap-in or insert caps
- Ambient Temperature: Suitable for environments from -25°C to +50°C for illuminated versions
- Environmental Resistance: 95% humidity for 96 hours at 40°C, shock resistance up to 50G
Buy the Buy NKK Switches Standard Size Pushbutton Part Number LB25CKW01G Online
Purchase your NKK Series LB25CKW01G illuminated pushbutton now to ensure reliable and long-lasting performance in industrial control applications. Featuring snap-in mounting, multiple LED colors, and IP65 sealing, this switch provides excellent visibility and durability. Ideal for operator panels, automation systems, and machinery where dependable circuit control is essential. With a robust electrical capacity of 3A at 125/250V AC and 0.4VA at 28V AC/DC, it offers tactile and auditory feedback, making it a perfect choice for demanding environments. Buy online today and upgrade your control solutions with confidence.
Order your NKK Series LB25CKW01G illuminated pushbutton today and enhance your control panels with reliable, easy-to-install performance.
Frequently Asked Questions
Where can I buy NKK Switches LB25CKW01G?
You can click on the BUY or RFQ button to purchase LB25CKW01G from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part LB25CKW01G?
You can download the LB25CKW01G datasheet or visit the NKK Switches website for support.
Who is the manufacturer of LB25CKW01G?
NKK Switches
